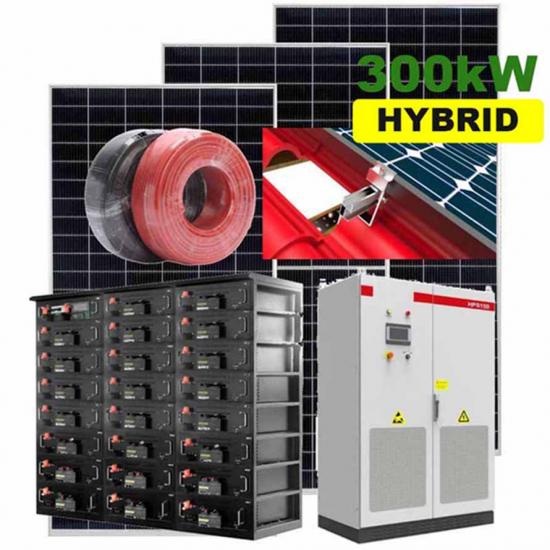

Such hybrid solar system can work as both solar on grid system and solar off grid system.
It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit.
It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Payment:
TT/LC/PAYPALProduct Origin:
CHINAShipping Port:
SHANGHAILead Time:
25daysOrder(MOQ):
1
What is Hybrid Solar Energy System?
Hybrid Solar Energy System Also Named On&Off Grid Solar Energy System. It has the feature and function of both on grid and off grid solar energy system. If you have a set of hybrid solar energy system, you could use electricity from solar panel in the daytime when sun is good, you could use electricity stored in battery bank in the evening or on rainy days.
Working principle
System configuration
system power
50kW
100kW
150kW
200kW
300kW
Hybrid Inverter (KW)
50KW
100KW
150KW
2pcs 100kW in parallel
2pcs 150kW in parallel
550W Mono Solar Panel(15pcs in one string)
90
180
270
360
540
PV Combiner Box (Set)
1pc(6 inputs, 1 output)
1pc(12 inputs, 1 output)
1pc(18 inputs, 1 output)
2pcs(12 inputs, 1 output)
2pcs(18 inputs, 1 output)
Lifepo4 battery
480V300AH
480V600AH
480V900AH
480V1200AH
480V1800AH
Mounting structure
Customized, alluminum alloy or gavalnized steel
PV cables 4mm2(m)
400
800
1200
1600
2400
MC4 connector
6
12
18
24
36
BVR cables(PV combiner box to inverter)
25mm2(50m)
50mm2(50m)
70mm2(50m)
50mm2（100m)
70mm2(100m)
BVR cables(battery to inverter)
35mm2(20m)
70mm2(20m)
120mm2(20m)
70mm2(40m)
120mm2(40m)
Main components introduction
mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs
all in one hybrid inverter, power frequency type, seamless on/off grid transfer, programmable working modes, with parallel function
Grade A cells, with intelligent BMS inside, different voltage such as 240v, 352v, 384v, 480v, 600v can be customized.
Advantages of Hybrid Solar Systems
1. Programmable working modes such as time shifting mode, peak-shaving mode
2. Compatiable with high voltage battery
3. Parallel for scalability
4. Seamless transfer on/off grid
5. Intelligent energy management system for home.
How does a hybrid solar system work?
A solar hybrid system is a renewable energy system that uses solar photovoltaic (PV) panels to generate clean energy to power your home. A hybrid solar system intelligently switches between using solar power, battery storage, and grid power. It allows you to avoid using grid power at peak prices leading to bill savings.
The system stores renewable energy produced by its rooftop solar panels. During a storm or power outage, the system seamlessly kicks in and powers all of your home’s essential loads. Keeping your lights on, refrigerator running, and phones and tablets charged.
FAQ
1: What's your main products?
solar lithium-ion battery, on grid, off grid and hybrid solar system, solar inverter, high voltage mppt solar charge controller, solar air conditioner
2:What is your advantage in solar products?
We have been in solar industry for more than 10years and accumulated rich experience. With branch in Japan, Korea, Singapore and Cambodia, full support can be supplied from design to installation.
3: Can you send free samples?
It depends on which kind of products. Normally the sample fee will be returned after you place massive order.
4: What's the shipping cost?
After you confirm the quantity, please let us know which kind of transportation(by sea, by air, by DHL or Fedex or TNT or UPS) you prefer and the destination port. We will send you the shipping cost and time.
5: What's your minimum order quantity?
1pc.
6: How can we send the payment?
T/T, L/C, Paypal, Western Union.
In recent years, photovoltaic power generation technology has advanced rapidly, and the installed capacity has increased rapidly. However, photovoltaic power generation has shortcomings such as intermittent and uncontrollable. Before processing, large-scale direct access to the power grid will bring great impact and affect the stable operation of the power grid. Adding the energy storage can make the photovoltaic power generation smoothly and stably output to the power grid, and the large-scale access to the power grid will not affect the stability of the power grid. And photovoltaic + energy storage, the system has a wider range of applications.
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Characters Optimized transformer-less topology structure Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range. SIC components enhance power density. 0 ampere leakage current design protect against tripping Easy installation and free maintenance WiFi or GPRS (optional) communication Multi-inverters parallel connection available 5 years standard warranty, 15years extention optional High standard components design maximally reduce damage resulted from false-operation Component brands Specification Model No ST4KTL ST5KTL ST6KTL ST8KTL ST10KTL DC side/Input parameters Max. DC power [W] 5500 6500 7500 9500 11500 Max. DC voltage [Vdc] 1000 1000 1000 1000 1000 Min. System start voltage [Vdc] 250 250 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 250~850 250~850 Max. input current [A] 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 Number of MPP trackers 2 2 2 2 2 Strings per MPP tracker 1 1 1 1 1 AC side/output parameters Nominal output power [W] 4000 5000 6000 8000 10000 Maximum output power [W] 5000 5500 7000 8800 11000 Nominal output voltage/range [V] 400Vac/ 380-440V AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 8 10 12 15 17 AC connection(with PE) 3W/N/PE Three phase Three phase Three phase Three phase Current distortion(THDi) [%] <1.5 <1.5 <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98 98.2 98.2 98.3 98.4 European efficiency[%] 97.5 97.7 97.7 97.8 97.9 MPPT efficiency[%] 99.9 99.9 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 480*400*180 Weight (kg) 22 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
The 120kw solar energy system is suitable for area such as remote sea island, resort, farm where there is no public electricity or public electricity is not stable. It will be perfect solution to supply power to the loads and decrease the electricity bill and fuel bill. Inverter power: 120kW power frequency inverter AC output voltage: three phase AC208V or AC380V Battery voltage: DC360V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly
