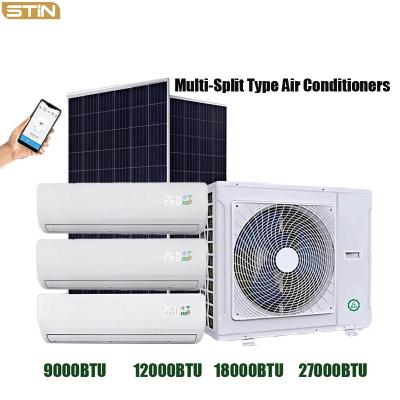

At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office…
With APP monitor and control function through WIFI
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15daysOrder(MOQ):
1Specification of solar air conditioner
| Model | Unit | ACDCBLW-12K | ACDCBLW-18K | ACDCBLW-24K | |
| Climate Type | Tropical</= 58ºC |
|
T3/T1 | T3/T1 | T3/T1 |
| Application area | m2 | 12-20 | 20-30 | 30-42 | |
|
Power Supply |
AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ |
| DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V | |
| DC Power Current | A | </=10A | </=10A | </=10A | |
| Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | |
|
Rated Cooling |
Capacity(T1) |
W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) |
| BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||
| Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | |
|
Capacity(T3) |
W | 2910 | 4290 | 5130 | |
| BTU | 9900 | 14700 | 17500 | ||
| Power input(T3) | W | 1050 | 1630 | 1940 | |
|
Rated Heating |
Capacity |
W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) |
| BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | ||
| Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | |
| T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | |
| T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | 2.65/9.00 | |
| COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | |
| Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | |
|
Compressor |
Model | / | WHP04200 | WHP05600 | 5RD198 |
| Type | / | 2xRotary Inverter | 2xRotary Inverter | 2xRotary Inverter | |
|
Indoor fan motor |
Model |
|
BLDC-15W | BLDC-45W | BLDC-45W |
| Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | |
| Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 | |
| Indoor noise level (Turbo) | dB(A) | ≤42.5 | ≤46 | ≤50 | |
|
Indoor unit |
Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 |
| Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 | |
| Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
|
Outdoor fan motor |
Model | / | BLDC-40W | BLDC-55W | BLDC-75W |
| Speed | r/min | 880 | 880 | 850 | |
| Outdoor air flow | m3/h | 2100 | 2200 | 3300 | |
| Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | |
|
Outdoor unit |
Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 |
| Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | |
| Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | |
| Refrigerant type | / | R410A | R410A | R410A | |
| Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | |
|
Refrigerant copper pipe |
Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 20 | 25 | |
| Max. difference in level | m | 8 | 10 | 10 | |
| Drain pipe size | mm | 16 | 16 | 16 | |
| Refrigerant connction copper pipe length | m | 3 | 4 | 4 | |
| Connection wire length | m | 4 | 5 | 5 | |
| Electronic Expansion Valve | / | Yes | Yes | Yes | |
| Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | |
Solar panel and system installation
Below is the design how our solar power system should be installed. If you want to use solar air conditioner only in day time (approximate from 7:00am to 17:00pm), then no need to install grid power to our system. If you want to ran at night with electricity or generator or youwant to work mix power to get best cooling in heavy cloudy days you can install grid power part for 24hour working.
Solar panel choosing
STIN hybrid ACDC solar air conditioners unit suit for both Poly and mono solar panel on the market from 250w to 450w. But all the solar panel should be in series connection, parallel is not allowed.
|
Model |
Capacity |
Solar DC voltage |
DC Current |
Input Power request |
|
DGWA1-ACDCBLW-12K WiFi |
12000btu 1.5HP 1Ton |
80V-380V |
</=10A |
940(190-1270) W |
|
DGWA1-ACDCBLW-18K WiFi |
18000btu 2.0Hp 1.5Ton |
80V-380V |
</=10A |
1400(220-2100) W |
|
DGWA1-ACDCBLW-24K WiFi |
24000btu 3.0Hp 2.0Ton |
80V-380V |
</=10A |
1790(300-3200) W |
WiFi control and APP power meter
The 3kw solar inverter is integrated with MPPT solar charge controller inside. It can also connect to grid to take grid as backup when battery is over discharged. The output voltage is 120V, several pieces in parallel can get 120V/240V split phase. All of parameter such as working mode, charging current, over discharge voltage can be set as you wish.
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
The 5kw solar inverter is integrated with MPPT solar charge controller inside. It can also connect to grid to take grid as backup when battery is over discharged. The output voltage is 220V, maximum 6pcs in parallel. 3pcs in parallel can get three phase 380v output. All of parameter such as working mode, charging current, over discharge voltage can be set as you wish.
The solar energy storage inverter can be used for both on grid and off grid solar systems, it integrates controller and inverter. During the daytime, the PV array generates electricity to provide power either to the loads, or to the grid or charge the battery. The battery can be charged either by PV power or by grid, the power stored in the battery can be released whenever the loads require it. Moreover ,the inverter can give three phase unbalanced output accroding to set up, to make a most flexible power solution.
Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable. It can be for Home applications, Commercial applications and Industrial applications. Inverter power: 3kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 100kw off grid solar system is suitable for area where there is no public electricity or public electricity is not stable. It will be a good solution to supply power to the loads and decrease the electricity bill and fuel bill. Inverter power: 100kw power frequency inverter AC output voltage: split phase 120V/240V or three phase 208V or 380V Battery voltage: DC360V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with generator and grid
such on grid solar system is usually for home use. Solar panel will be installed on the roof, solar power will support loads first, the excess power will be sold to grid. If the grid does not allow feed in function, one limiter can be installed. The output of 15kW/20kW is three phase.
The 120kw solar energy system is suitable for area such as remote sea island, resort, farm where there is no public electricity or public electricity is not stable. It will be perfect solution to supply power to the loads and decrease the electricity bill and fuel bill. Inverter power: 120kW power frequency inverter AC output voltage: three phase AC208V or AC380V Battery voltage: DC360V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly
