ENERGY EFFICIENT COOLING & HEATING SYSTEM - This split inverter system offers efficient cooling and heating capabilities, with DC Inverter technology provides up to 71% energy saving on the ECO mode.
SMART AND ALWAYS GETTING SMARTER - Wifi enable mini split system work remote control, You can control your mini split air conditioner from anywhere while you're away to save energy and feel cooler when you get home.
QUIET OPERATION - This highly-efficient mini split inverter system warrants ultra-low noise, the indoor unit operates as quiet as 19 dBa. The mini split provides balanced airflow to throughout your room and can adjust to suit your personal comfort.
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15daysOrder(MOQ):
1

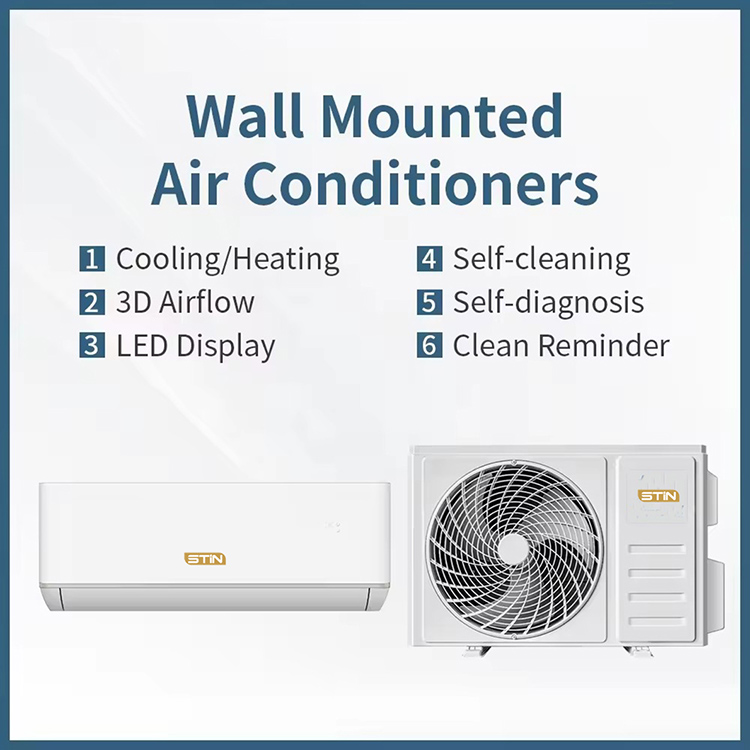

Feature of air conditioner
Specification of air conditioner
Specification of A+++ European New Effiency DC Inverter Split
Model
9000BTU
12000BTU
18000BTU

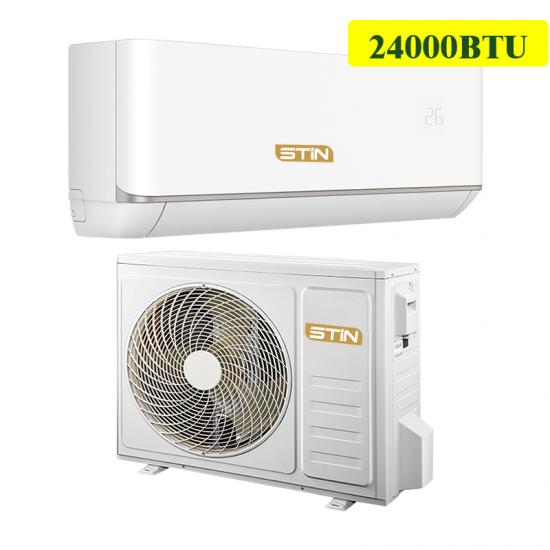

24000BTU
Type
heating pump
heating pump
heating pump
heating pump
Control type
remote controller
remote controller
remote controller
remote controller
Declared cooling capacity
W
2610(940~3700)
3510(1000~4600)
5100(1250-5920)
6910(1830~7820)
Declared heating capacity
W
2900(940~4000)
3800(1000~4900)
5300(1250-6690)
7100(1850~7960)
Pdesignc
W
2600
3500
5100
6900
SEER declared
W/W
8.5
8.5
8.5
8.5
Energy Class
A+++
A+++
A+++
A+++
EER declared
W/W
3.73
3.69
3.23
3.23
COP declared
W/W
3.82
3.80
3.71
3.73
Pdesignh Average
W
2300
2600
4500
5500
SCOP Average declared
W/W
4.6
4.6
4.6
4.6
Energy Class(Average)
A++
A++
A++
A++
Annual energy consumption
Cooling
kwh/a
107
144
210
284
Average
kwh/a
700
791
1370
1674
Moisture removal
Liters/h
1
1.2
1.5
2.0
Indoor sound power(S/H/M/L/Mute)
dB(A)
52/48/43/37/33
53/49/44/38/35
57/54/50/43/40
59/55/51/45/42
Outdoor sound power
dB(A)
63
63
67
69
Indoor sound pressure(S/H/M/L/Mute)
dB(A)
42/38/33/27/23
44/39/35/29/25
47/43/40/35/30
50/46/40/36/32
Outdoor sound pressure
dB(A)
53
53
57
59
Electrical Data
Power supply
220-240V~/50Hz/1P
220-240V~/50Hz/1P
220-240V~/50Hz/1P
220-240V~/50Hz/1P
Power supply side
Indoor
Indoor
Outdoor
Outdoor
Voltage Range
V
165~265
165~265
165~265
165~265
Operating current
Cooling
A
4.0(1.2~8.1)
5.3(1.5～9.2)
8.1(1.7~12.0)
10.9(2.3~13.0)
Heating
A
4.4(1.2~9.0)
5.8(1.5～10.0)
7.1(1.7~13.0)
9.6(2.3~14.0)
Power consumption
Cooling
W
700(240～1380)
950(290～1510)
1579(330-2350)
2138(410~2800)
Heating
W
760(240～1552)
1000(290～1720)
1428(340-2540)
1905(420~3000)
Refrigerating System
Refrigerant type/Charge/GWP/CO2 equivalent
R32/0.45kg/675/0.304tonnes
R32/0.63kg/675/0.426tonnes
R32/1.14kg/675/0.770tonnes
R32/1.27kg/675/0.858tonnes
Compressor
Type
Rotary
Rotary
Rotary
Rotary
Model
KSK82D26UEZE3
KSN98D64UEZ3
KSN140D33UFZ3
C-6RZ180H3AAF
MFG
GMCC
GMCC
GMCC
SANYO
Indoor air circulation Cooling/heating
m3/h
560/560
670/670
1000/1000
1100/1100
Indoor fan type
Cross Flow,DC
Cross Flow,DC
Cross Flow DC
Cross Flow DC
Outdoor fan type
Propeller fan,DC
Propeller fan,DC
Propeller fan
Propeller fan
Connections
Connecting Wiring
Core x Size
5×1.0mm²
5×1.5mm²
5×1.5mm²
5×2.5mm²
Expension device
Electronic expansion valve
Electronic expansion valve
Electronic expansion valve
Electronic expansion valve
Connecting Pipe
Gas
Inches
3/8"
3/8"
3/8"
1/2"
Liquid
Inches
1/4"
1/4"
1/4"
1/4"
Others
Application area
m²
9~16
14~22
20~35
27~45
Max. refrigerant pipe length
m
25
25
25
25
Max. difference in level
m
10
10
10
10
Operation temperature range
℃
16-31
16-31
16-31
16-31
Ambient temperature range
Outdoor
℃
Cooling:15-53/Heating:-20-30
Cooling:15-53/Heating:-20-30
Cooling:15-53/Heating:-20-30
Cooling:15-53/Heating:-20-30
Outdoor
℃
Cooling:15-53/Heating:-25-30
Cooling:15-53/Heating:-25-30
Cooling:15-53/Heating:-25-30
Cooling:15-53/Heating:-25-30
Indoor
℃
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30
Cooling:17-32/Heating:0-30

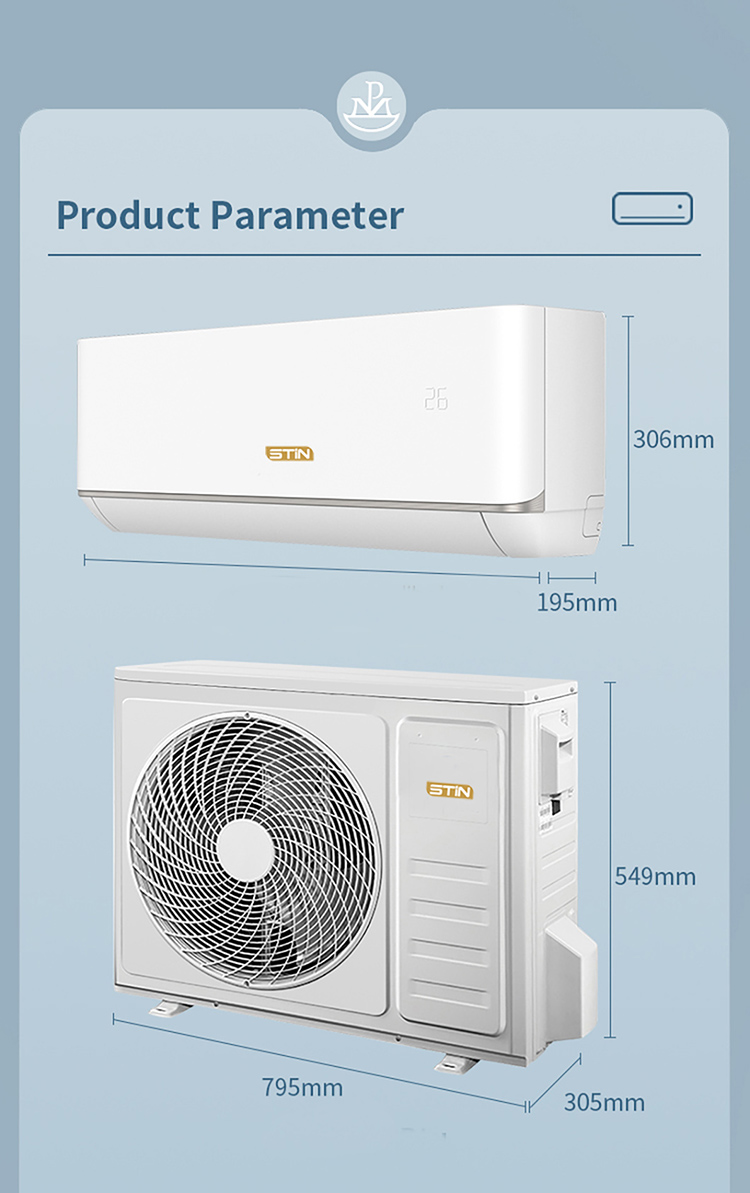

Net dimensions
Indoor
mm
790×275×192
820×306×195
1100×333×222
1100×333×222
(W x H x D)
Outdoor
mm
795×549×305
795×549×305
920×699×380
967×803×421
Net weight
Indoor
kg
8.5
9.5
13
14
Outdoor
kg
25
25
39
48
Packing dimensions
Indoor
mm
860×345×265
890×380×265
1165×405×295
1165×405×295
(W x H x D) w/o pipe
Outdoor
mm
835×340×585
835×340×585
960×732×400
1022×835×480
Gross weight
Indoor
kg
10.5
12
16
17
Outdoor
kg
28
28
42
52
Loading Capacity w/o pipe
40'HQ
268
250
155
120
w/o pipe
