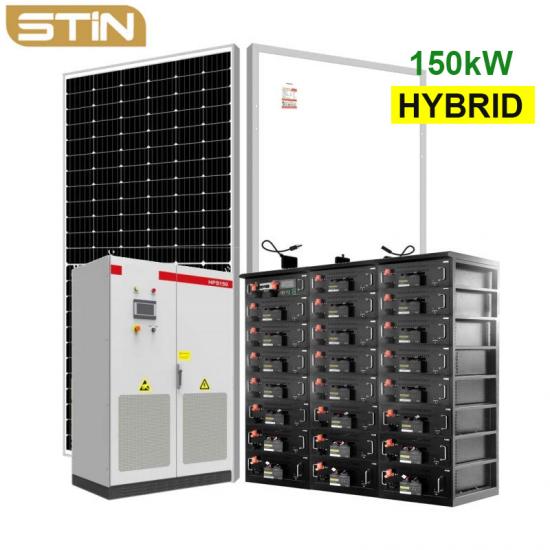

Such hybrid solar system can work as both solar on grid system and solar off grid system.
It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit.
It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Payment:
TT/LC/PAYPALProduct Origin:
CHINAShipping Port:
SHANGHAILead Time:
25daysOrder(MOQ):
1
What is Hybrid Solar Energy System?
Hybrid Solar Energy System Also Named On&Off Grid Solar Energy System. It has the feature and function of both on grid and off grid solar energy system. If you have a set of hybrid solar energy system, you could use electricity from solar panel in the daytime when sun is good, you could use electricity stored in battery bank in the evening or on rainy days.
Working principle
System configuration
system power
50kW
100kW
150kW
200kW
300kW
Hybrid Inverter (KW)
50KW
100KW
150KW
2pcs 100kW in parallel
2pcs 150kW in parallel
550W Mono Solar Panel(15pcs in one string)
90
180
270
360
540
PV Combiner Box (Set)
1pc(6 inputs, 1 output)
1pc(12 inputs, 1 output)
1pc(18 inputs, 1 output)
2pcs(12 inputs, 1 output)
2pcs(18 inputs, 1 output)
Lifepo4 battery
480V300AH
480V600AH
480V900AH
480V1200AH
480V1800AH
Mounting structure
Customized, alluminum alloy or gavalnized steel
PV cables 4mm2(m)
400
800
1200
1600
2400
MC4 connector
6
12
18
24
36
BVR cables(PV combiner box to inverter)
25mm2(50m)
50mm2(50m)
70mm2(50m)
50mm2（100m)
70mm2(100m)
BVR cables(battery to inverter)
35mm2(20m)
70mm2(20m)
120mm2(20m)
70mm2(40m)
120mm2(40m)
Main components introduction
mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs
all in one hybrid inverter, power frequency type, seamless on/off grid transfer, programmable working modes, with parallel function
Grade A cells, with intelligent BMS inside, different voltage such as 240v, 352v, 384v, 480v, 600v can be customized.
Advantages of Hybrid Solar Systems
1. Programmable working modes such as time shifting mode, peak-shaving mode
2. Compatiable with high voltage battery
3. Parallel for scalability
4. Seamless transfer on/off grid
5. Intelligent energy management system for home.
How does a hybrid solar system work?
A solar hybrid system is a renewable energy system that uses solar photovoltaic (PV) panels to generate clean energy to power your home. A hybrid solar system intelligently switches between using solar power, battery storage, and grid power. It allows you to avoid using grid power at peak prices leading to bill savings.
The system stores renewable energy produced by its rooftop solar panels. During a storm or power outage, the system seamlessly kicks in and powers all of your home’s essential loads. Keeping your lights on, refrigerator running, and phones and tablets charged.
FAQ
1: What's your main products?
solar lithium-ion battery, on grid, off grid and hybrid solar system, solar inverter, high voltage mppt solar charge controller, solar air conditioner
2:What is your advantage in solar products?
We have been in solar industry for more than 10years and accumulated rich experience. With branch in Japan, Korea, Singapore and Cambodia, full support can be supplied from design to installation.
3: Can you send free samples?
It depends on which kind of products. Normally the sample fee will be returned after you place massive order.
4: What's the shipping cost?
After you confirm the quantity, please let us know which kind of transportation(by sea, by air, by DHL or Fedex or TNT or UPS) you prefer and the destination port. We will send you the shipping cost and time.
5: What's your minimum order quantity?
1pc.
6: How can we send the payment?
T/T, L/C, Paypal, Western Union.
In recent years, photovoltaic power generation technology has advanced rapidly, and the installed capacity has increased rapidly. However, photovoltaic power generation has shortcomings such as intermittent and uncontrollable. Before processing, large-scale direct access to the power grid will bring great impact and affect the stable operation of the power grid. Adding the energy storage can make the photovoltaic power generation smoothly and stably output to the power grid, and the large-scale access to the power grid will not affect the stability of the power grid. And photovoltaic + energy storage, the system has a wider range of applications.
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Features: The battery module consists of single LFP cells, wire, BMS and container. ●Packed with high performance LFP single cell, long life, safety and wide temperature range ●High energy density, small size, light weight, no pollution ●Packing with single cell container, fire retardant wire and laser welding, stable and safe ●Built-in BMS, with battery voltage, current, temperature and health management ●LED indicate the battery SOC and operating status ● LCD Screen display the battery voltage, current, temp.,SOC detail information ●Support communicate with solar inverter bu CAN or RS485 ●Update software by RS485 port ●Flexible customization of dimensions ●More than 15 years design life ●Stable performance, maintenance-free Dimension Specification Item Specification Conditions Nominal Voltage 51.2V 25℃,0.2C Capacity 200Ah Module weight 80.0kg ±1kg Dimensions(W*D*H), mm 442*600*230 ±2mm Operating parameters Charging Voltage 56.0+/-0.8V End-off Voltage 44.8V Charging current Max constant charge: 100A Recommended 30A Discharging current Max constant discharge: 100A Temperature Charge range 0℃~50℃ Discharge range -20℃~55℃ Storage range -20℃~55℃ BMS Built-in BMS Voltage, current, temperature management & cell balance RS485,CAN communication Service life Design life >15years 25℃ Cycle life >6000 times, 0.5C, 80%DOD Performance curve
