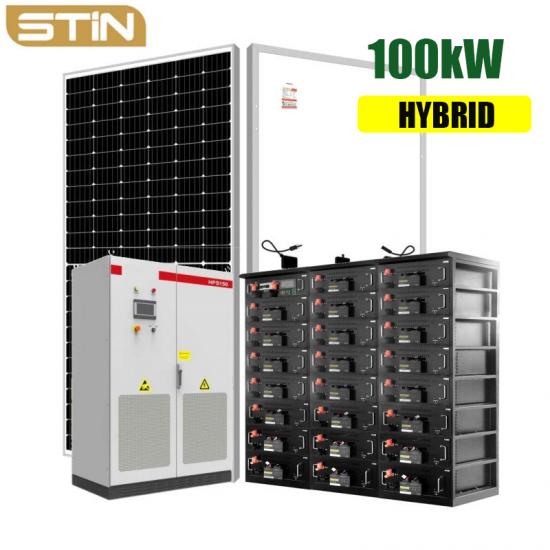

Such hybrid solar system can work as both solar on grid system and solar off grid system.
It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit.
It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Payment:
TT/LC/PAYPALProduct Origin:
CHINAShipping Port:
SHANGHAILead Time:
25daysOrder(MOQ):
1
What is Hybrid Solar Energy System?
Hybrid Solar Energy System Also Named On&Off Grid Solar Energy System. It has the feature and function of both on grid and off grid solar energy system. If you have a set of hybrid solar energy system, you could use electricity from solar panel in the daytime when sun is good, you could use electricity stored in battery bank in the evening or on rainy days.

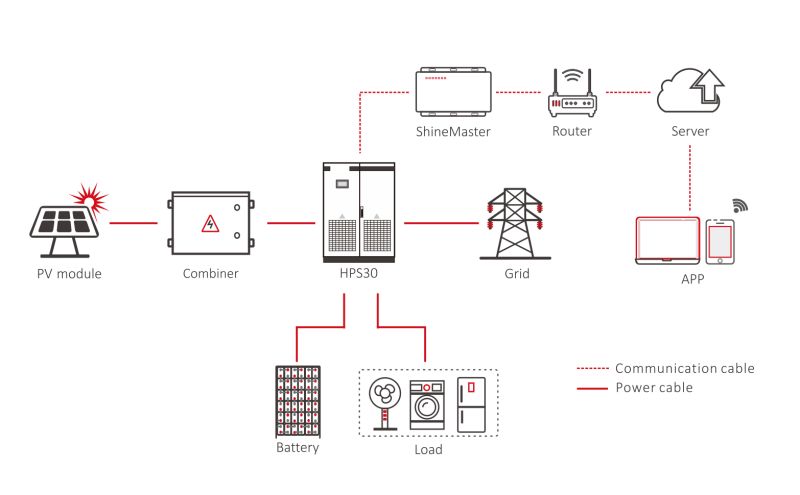

Working principle
System configuration
system power
50kW
100kW
150kW
200kW
300kW
Hybrid Inverter (KW)
50KW
100KW
150KW
2pcs 100kW in parallel
2pcs 150kW in parallel
550W Mono Solar Panel(15pcs in one string)
90
180
270
360
540
PV Combiner Box (Set)
1pc(6 inputs, 1 output)
1pc(12 inputs, 1 output)
1pc(18 inputs, 1 output)
2pcs(12 inputs, 1 output)
2pcs(18 inputs, 1 output)
Lifepo4 battery
480V300AH
480V600AH
480V900AH
480V1200AH
480V1800AH
Mounting structure
Customized, alluminum alloy or gavalnized steel
PV cables 4mm2(m)
400
800
1200
1600
2400
MC4 connector
6
12
18
24
36
BVR cables(PV combiner box to inverter)
25mm2(50m)
50mm2(50m)
70mm2(50m)
50mm2（100m)
70mm2(100m)
BVR cables(battery to inverter)
35mm2(20m)
70mm2(20m)
120mm2(20m)
70mm2(40m)
120mm2(40m)
Main components introduction

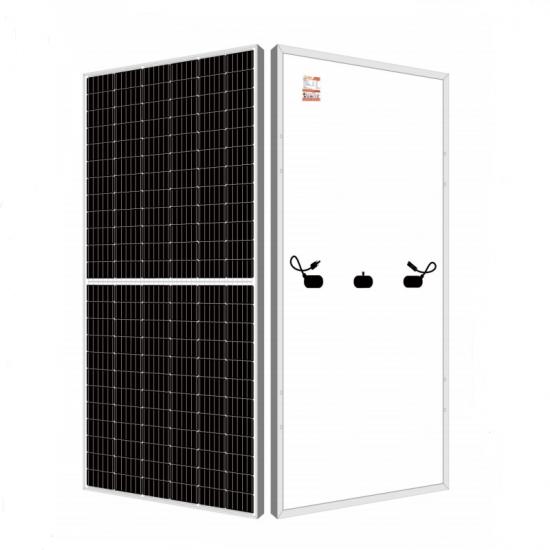

mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs

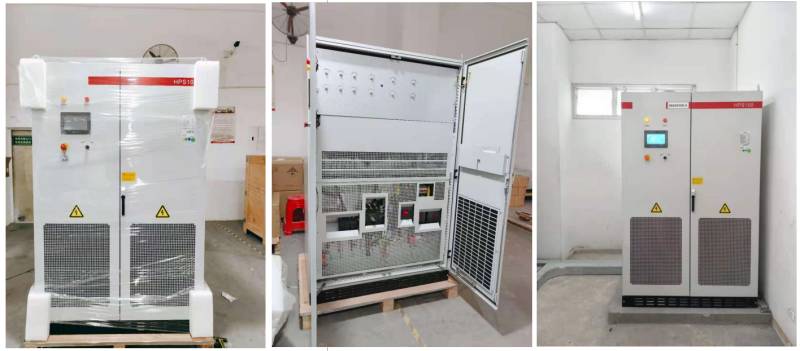

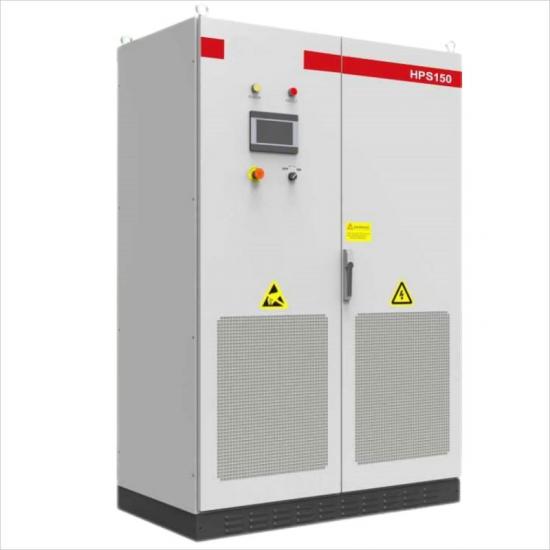

all in one hybrid inverter, power frequency type, seamless on/off grid transfer, programmable working modes, with parallel function

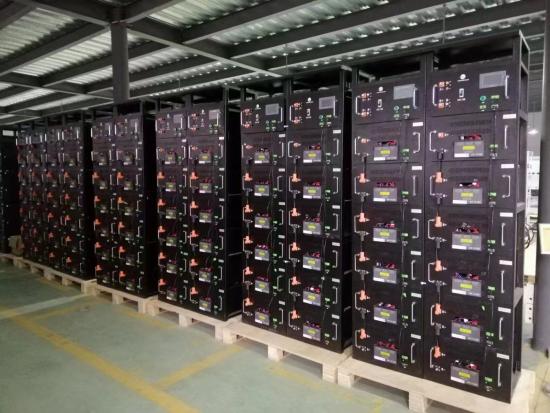

Grade A cells, with intelligent BMS inside, different voltage such as 240v, 352v, 384v, 480v, 600v can be customized.
Advantages of Hybrid Solar Systems
1. Programmable working modes such as time shifting mode, peak-shaving mode
2. Compatiable with high voltage battery
3. Parallel for scalability
4. Seamless transfer on/off grid
5. Intelligent energy management system for home.
How does a hybrid solar system work?
A solar hybrid system is a renewable energy system that uses solar photovoltaic (PV) panels to generate clean energy to power your home. A hybrid solar system intelligently switches between using solar power, battery storage, and grid power. It allows you to avoid using grid power at peak prices leading to bill savings.
The system stores renewable energy produced by its rooftop solar panels. During a storm or power outage, the system seamlessly kicks in and powers all of your home’s essential loads. Keeping your lights on, refrigerator running, and phones and tablets charged.
FAQ
1: What's your main products?
solar lithium-ion battery, on grid, off grid and hybrid solar system, solar inverter, high voltage mppt solar charge controller, solar air conditioner
2:What is your advantage in solar products?
We have been in solar industry for more than 10years and accumulated rich experience. With branch in Japan, Korea, Singapore and Cambodia, full support can be supplied from design to installation.
3: Can you send free samples?
It depends on which kind of products. Normally the sample fee will be returned after you place massive order.
4: What's the shipping cost?
After you confirm the quantity, please let us know which kind of transportation(by sea, by air, by DHL or Fedex or TNT or UPS) you prefer and the destination port. We will send you the shipping cost and time.
5: What's your minimum order quantity?
1pc.
6: How can we send the payment?
T/T, L/C, Paypal, Western Union.
In recent years, photovoltaic power generation technology has advanced rapidly, and the installed capacity has increased rapidly. However, photovoltaic power generation has shortcomings such as intermittent and uncontrollable. Before processing, large-scale direct access to the power grid will bring great impact and affect the stable operation of the power grid. Adding the energy storage can make the photovoltaic power generation smoothly and stably output to the power grid, and the large-scale access to the power grid will not affect the stability of the power grid. And photovoltaic + energy storage, the system has a wider range of applications.
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
The solar energy storage inverter can be used for both on grid and off grid solar systems, it integrates controller and inverter. During the daytime, the PV array generates electricity to provide power either to the loads, or to the grid or charge the battery. The battery can be charged either by PV power or by grid, the power stored in the battery can be released whenever the loads require it. Moreover ,the inverter can give three phase unbalanced output accroding to set up, to make a most flexible power solution.
Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
The 5kw off grid solar power system is suitable for a place where is no grid network or grid power is not stable. It can be described solar storage system with utility backup power, or grid-tied solar system with extra battery storage(no feed into grid). Inverter power: 5kW AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The 10kW solar off grid power plant is composed of solar panels, batteries, inverters and other accessories. This system can supply power to home loads independently, also it can be connected to grid or generator to take them as backup when battery is over discharged. Inverter power: 2pcs 5kw in parallel AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
