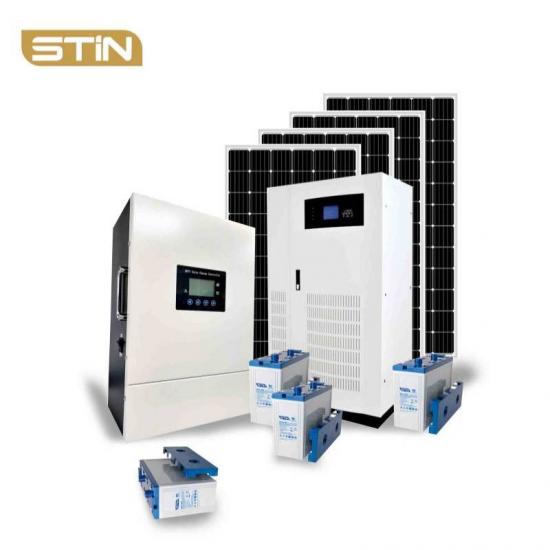

The 80kW off-grid solar system is suitable for commercial power stations. It has an intelligent power generation platform and energy storage system. It can be compatible with generator to save fuel bill.
Inverter power: 80kW power frequency inverter
AC output voltage: AC120V/240V split phase or three phase 208V/380V
Battery voltage: DC360V
Battery type: Gel battery or LiFePO4 battery
Solar panel type: Mono or poly
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenOrder(MOQ):
180kw solar off grid system configuration for your reference
No
Item
Specification
Quantity
Remark
1
mono
400W
150
grade A cells,15pcs in one string and 10 strings in paralle1
2
Solar panel bracket
C-shaped steel
1
Ground type
3
PV combiner box
5 inputs, 1 output
2
waterproof, lightning protection, with DC breaker and fuse
4
MPPT charging controller
360V/80A
2
5
Off grid inverter three phase
Pure sine wave, 80KW/360V
1
power frequency inverter;output:380VAC/50HZ ;(each phase can run 100% unbalanced loads with 220V50HZ output, the maximum load capacity for each phase is 26.7KW)
6
Gel battery (deep cycle)
2V800AH
180
180pcs 2v800ah in one string, including cables and battery rack
7
accessories
Battery distribution box(with MCCB breaker)
1
It is for DC part
MC4 connector
15
PV cables(solar panel to PV combiner box)
4mm2
300
BVR cables(PV combiner box to MPPT controller)
10mm2
100
BVR cables(battery to distribution box)
35mm2*2
20
BVR cables(inverter to distribution box)
35mm2*2
20
BVR cables (MPPT controller to distribution box)
25mm2
40
Main components introduction
|

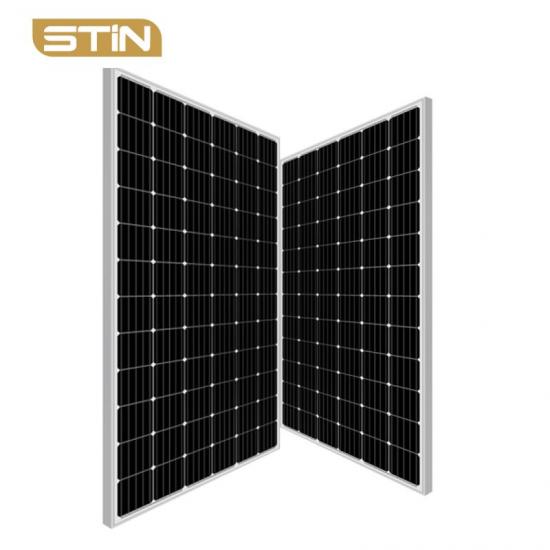

mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance |
|
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs |
|
PV combiner box, 5 inputs, 1 output, with DC breaker, SPD and fuse. 1000V, IP65 protectiong grade |
|

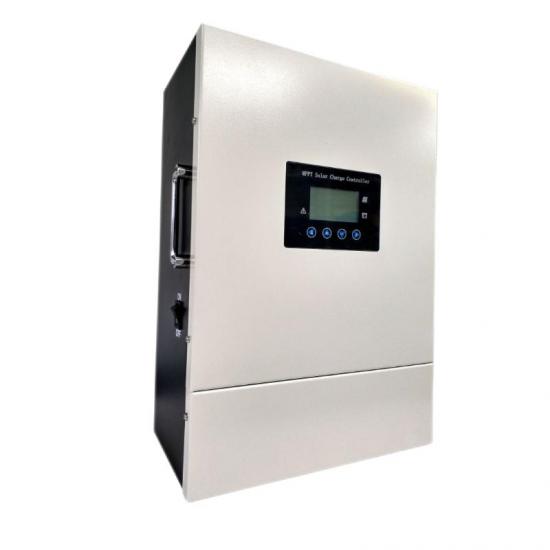

360V80A mppt solar charge controller, 1PV port, maximum pv input power 34kW. Wide PV input range: 380V-750V. MPPT tracking efficiency can reach up to 99.9%. IGBT module design, suitable for both gel battery and lithium-ion battery. |
|

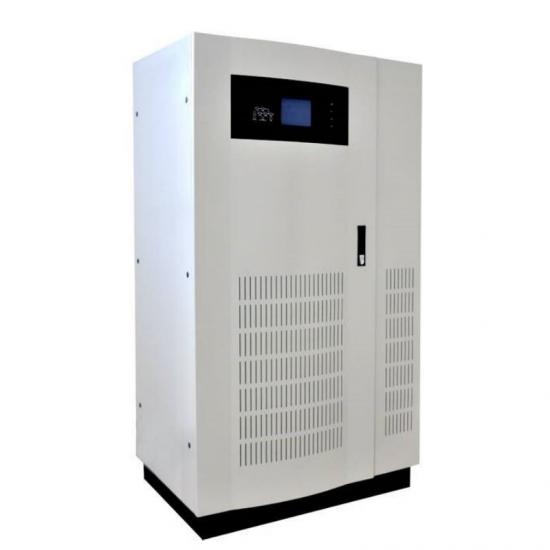

80kW power frequency inverter with transformer inside, stable output, 92% high efficiency, suitable for all kinds of inductive loads. Output voltage can be three phase 380V or three phase 208V. |
|
2V800AH gel battery, ABS outshell, low internal resistance, long cycle lifespan, low self discharge rate, wide operation temperature range |
How to choose one suitable solar off grid system?
1, confirm the inverter voltage and inverter power based on your loads
2, confirm if the system is totally off grid or with grid/generator as backup
3, confirm solar panel power based on your daily load conumption and solar irradiance figure
4, confirm battery type and battery backup hours
