Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15daysFeatures:

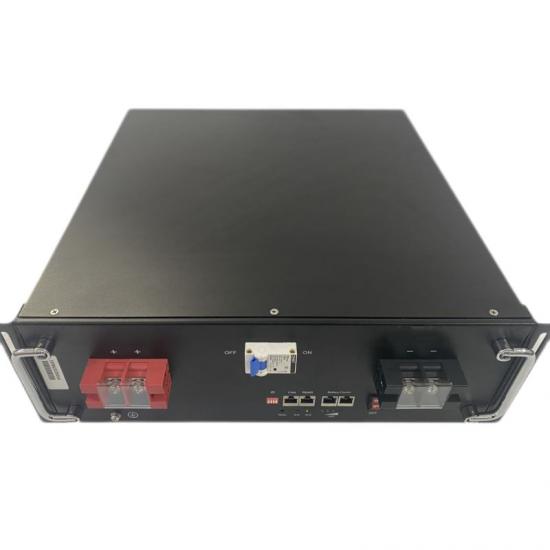

The battery module consists of single LFP cells, wire, BMS and container.
●Packed with high performance LFP single cell, long life, safety and wide temperature range
●High energy density, small size, light weight, no pollution
●Packing with single cell container, fire retardant wire and laser welding, stable and safe
●Built-in BMS, with battery voltage, current, temperature and health management
●LED indicate the battery SOC and operating status
● LCD Screen display the battery voltage, current, temp.,SOC detail information
●Support communicate with solar inverter bu CAN or RS485
●Update software by RS485 port
●Flexible customization of dimensions
●More than 15 years design life
●Stable performance, maintenance-free

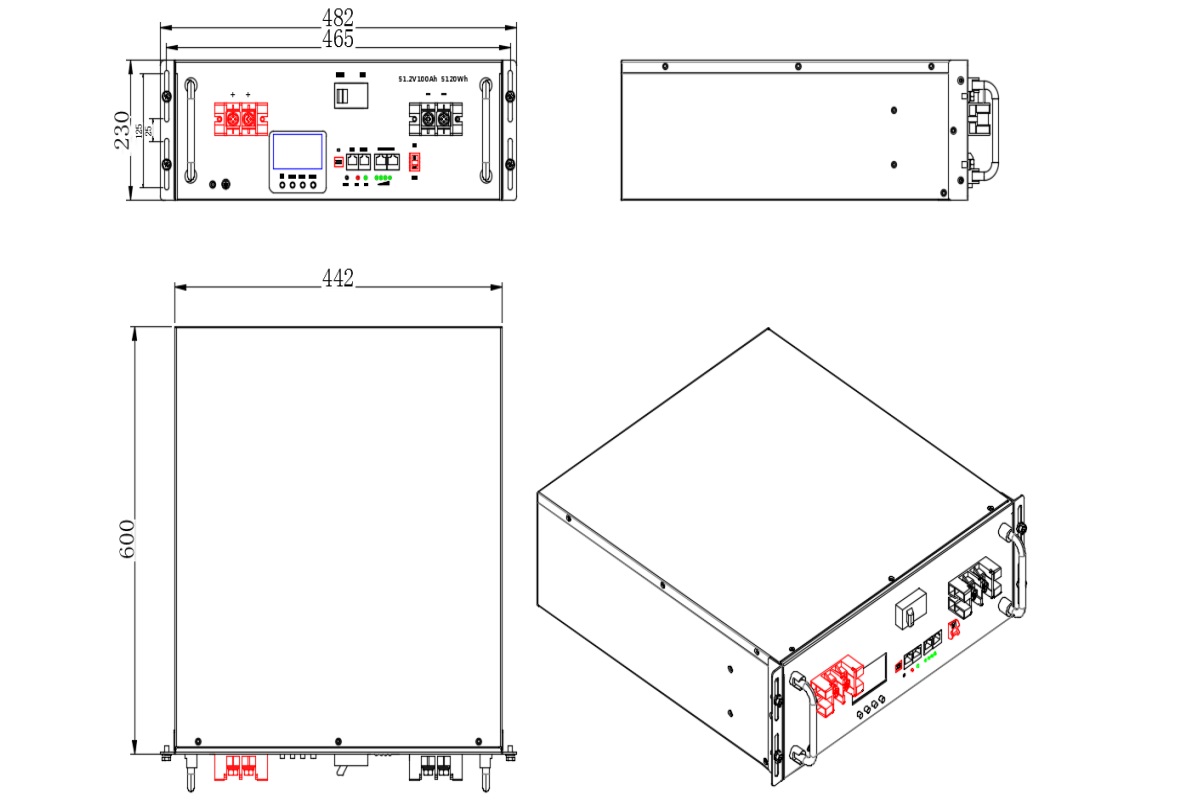

Dimension
Specification
Item |
Specification |
Conditions |
|
Nominal |
Voltage |
51.2V |
25℃,0.2C |
Capacity |
200Ah |
||
Module weight |
80.0kg |
±1kg |
|
Dimensions(W*D*H), mm |
442*600*230 |
±2mm |
|
Operating parameters |
Charging Voltage |
56.0+/-0.8V |
|
End-off Voltage |
44.8V |
|
|
Charging current |
Max constant charge: 100A |
Recommended 30A |
|
Discharging current |
Max constant discharge: 100A |
|
|
Temperature |
Charge range |
0℃~50℃ |
|
Discharge range |
-20℃~55℃ |
|
|
Storage range |
-20℃~55℃ |
|
|
BMS |
Built-in BMS |
Voltage, current, temperature management & cell balance |
RS485,CAN communication |
Service life |
Design life |
>15years |
25℃ |
Cycle life |
>6000 times, 0.5C, 80%DOD |

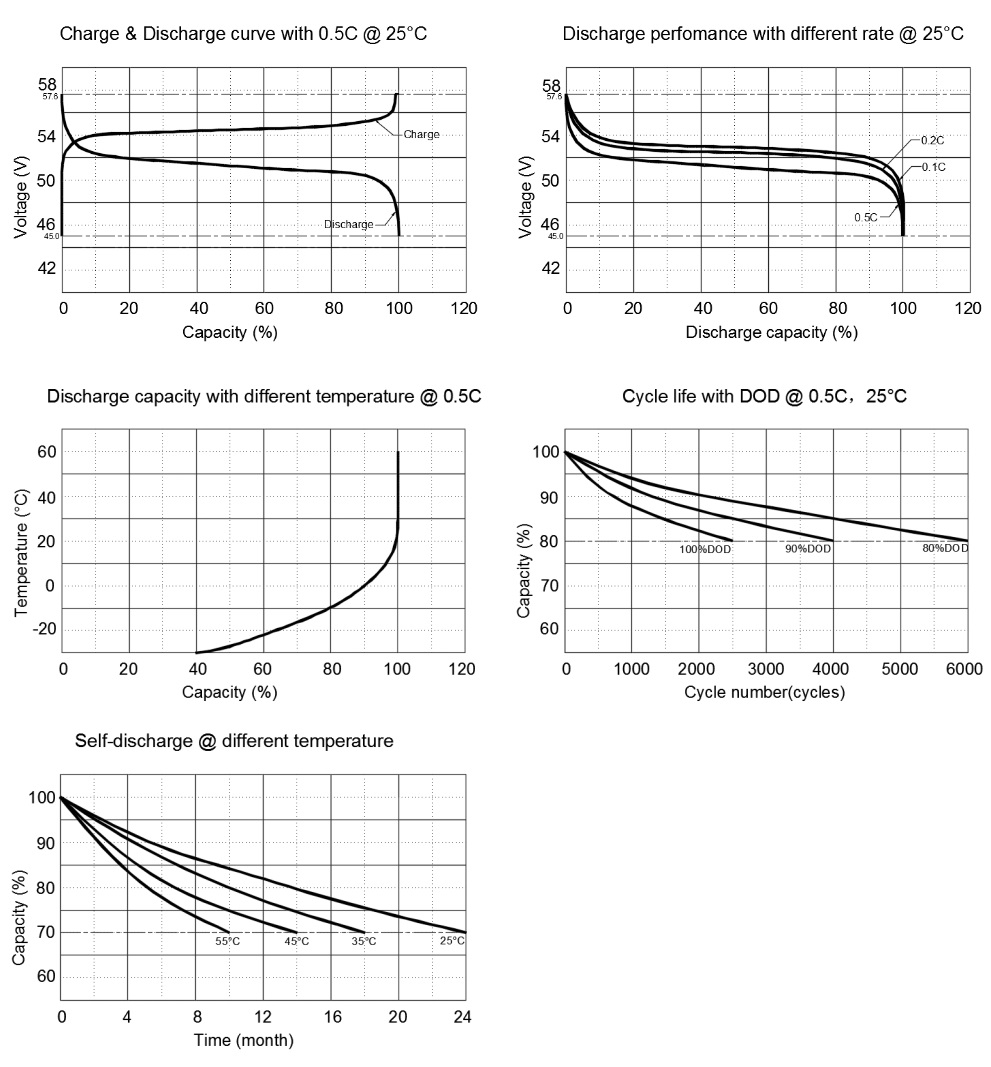

Performance curve
