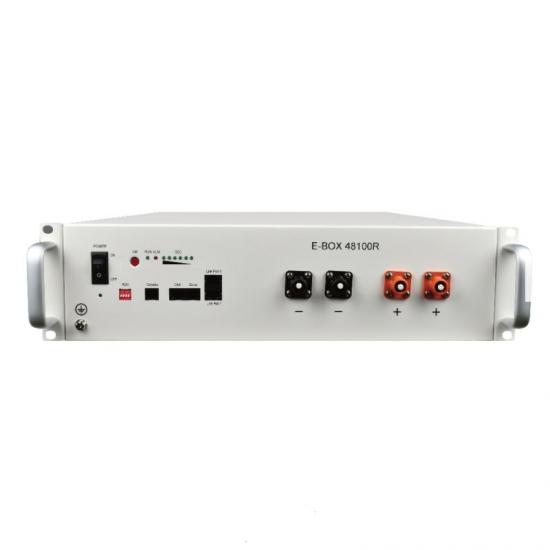

E-BOX-48100R, the new generation LFP battery for home energy storage system. It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance and used as the building block of energy storage system by assembling in parallel. It is widely applied in home applications, small commercial and industrial energy storage system as well as Telecom stations.
Item NO.:
E-BOX-48100RPayment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
ShanghaiLead Time:
20daysOrder(MOQ):
10Product weight:
5100
51.2V100AH lifepo4 battery with UL1973 certificate and 10 years warranty
Model: 51.2V 100AH
Rated Voltage (V): 51.2V
Rated Capacity (Ah): 100Ah
Supply Ability: 5000 per Month
MOQ: 10-50PCS
Approx Dimension: 440*620*117mm
Approx Weight: 51kg
Certificate: UL1973, IEC62619,UN38.3, MSDS
Battery Model |
E-BOX-48100R |
Chemistry |
LFP |
Nominal Voltage |
51.2V |
Voltage Range |
47.5V-57.6V |
Nominal Capacity |
100Ah |
Nominal Energy |
5.12kWh |
Unit Dimension |
L440mm* W620mm * H117mm(2.6U) |
Unit Weight |
51kg |
Standard Charge Current |
50A |
Maximum Charge Current |
50A |
Standard Discharge |
50A |
Maximum Discharge Rate |
50A |
Round-Trip Efficiency |
≥95% |
Communication Protocol |
RS232, RS485, CAN |
Cycle Life |
≥6000cycles@0.5C/0.5C @90%DOD, ret@80%, 25℃ |
Calendar Life |
≥10years |
Operating Temperature |
Charge: 0℃~ 45℃, Discharge: -10℃~ 55℃ |
Certificates |
IEC62619 / UL1973 / UN38.3 |
Connect style |
Parallel(maximum 56pcs) |
Storage Temperature |
Within 1month: -20~55°C,1-3months: 0~35°C,3-12months: 20~25°C |
Compatibility inverter |
Deye, Solis, Victron, Voltronic, Sol-ark, Growatt, SRNE, Luxpower, Kelong, Goodwe, Studer, Sermatec, Megarevo etc. |
Installation way |

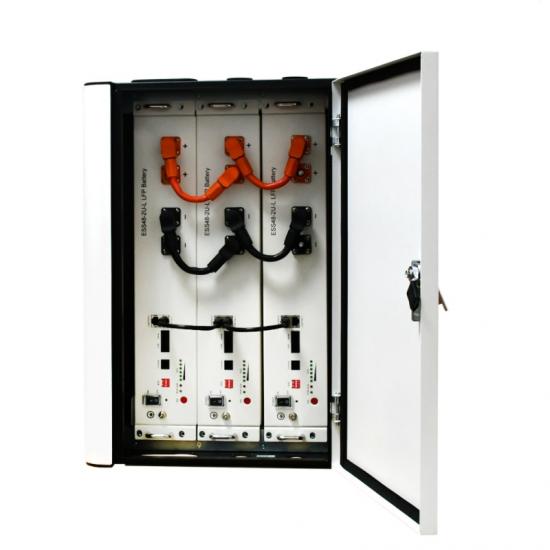

Wall mounted or floor standing(2pcs can be integrated into one box) |
The Lifepo4 battery power bank is Lithium iron phosphate battery module which designed for backup power application. This battery module integrated with intelligent BMS inside, has big advantages on safety, cycle life, energy density, temperature range and environmental protection. Model: 51.2V 100AH or 48V100AH Rated Voltage (V): 51.2V/48V Rated Capacity (Ah): 100Ah Supply Ability: 5000 per Month MOQ: 1pc Certificate: CE, IEC62619, UN38.3, MSDS,ISO9001
Features: The battery module consists of single LFP cells, wire, BMS and container. ●Packed with high performance LFP single cell, long life, safety and wide temperature range ●High energy density, small size, light weight, no pollution ●Packing with single cell container, fire retardant wire and laser welding, stable and safe ●Built-in BMS, with battery voltage, current, temperature and health management ●LED indicate the battery SOC and operating status ● LCD Screen display the battery voltage, current, temp.,SOC detail information ●Support communicate with solar inverter bu CAN or RS485 ●Update software by RS485 port ●Flexible customization of dimensions ●More than 15 years design life ●Stable performance, maintenance-free Dimension Specification Item Specification Conditions Nominal Voltage 51.2V 25℃,0.2C Capacity 200Ah Module weight 80.0kg ±1kg Dimensions(W*D*H), mm 442*600*230 ±2mm Operating parameters Charging Voltage 56.0+/-0.8V End-off Voltage 44.8V Charging current Max constant charge: 100A Recommended 30A Discharging current Max constant discharge: 100A Temperature Charge range 0℃~50℃ Discharge range -20℃~55℃ Storage range -20℃~55℃ BMS Built-in BMS Voltage, current, temperature management & cell balance RS485,CAN communication Service life Design life >15years 25℃ Cycle life >6000 times, 0.5C, 80%DOD Performance curve
The solar power inverter is highly integrated with the digital technology, which can improve the MTBF and reliability of the system, the whole systems are controlled by an independent high-speed DSP chips which can ensure the stability and reliable operation. Optional power: 40kW 60kW 80kW 100kW 120kW 150kW 200kW Battery voltage: DC192V/DC216V/DC220V/DC240V/DC360V/DC384V Battery type: Gel battery or Lithium-ion battery AC output voltage: three phase 208V or 380V/400V/415V
This kind of solar system is integrated with wind turbine. Solar panel and wind turbine supply power to loads and charge battery together. It is suitable for those area with high-quality wind resources.
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
Features: The battery module consists of single LFP cells, wire, BMS and container. ●Packed with high performance LFP single cell, long life, safety and wide temperature range ●High energy density, small size, light weight, no pollution ●Packing with single cell container, fire retardant wire and laser welding, stable and safe ●Built-in BMS, with battery voltage, current, temperature and health management ●LED indicate the battery SOC and operating status ● LCD Screen display the battery voltage, current, temp.,SOC detail information ●Support communicate with solar inverter bu CAN or RS485 ●Update software by RS485 port ●Flexible customization of dimensions ●More than 15 years design life ●Stable performance, maintenance-free Dimension Specification Item Specification Conditions Nominal Voltage 51.2V 25℃,0.2C Capacity 200Ah Module weight 80.0kg ±1kg Dimensions(W*D*H), mm 442*600*230 ±2mm Operating parameters Charging Voltage 56.0+/-0.8V End-off Voltage 44.8V Charging current Max constant charge: 100A Recommended 30A Discharging current Max constant discharge: 100A Temperature Charge range 0℃~50℃ Discharge range -20℃~55℃ Storage range -20℃~55℃ BMS Built-in BMS Voltage, current, temperature management & cell balance RS485,CAN communication Service life Design life >15years 25℃ Cycle life >6000 times, 0.5C, 80%DOD Performance curve
The charger is an AC to DC charging module. It has the advantages of wide constant power voltage range, high efficiency, high power factor, high power density, minimal electromagnetic radiation and interference, and high reliability to meet the fast charging needs of various batteries. ,Energy saving and environmental protection.
What is off grid system? Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable.It can be for Home applications, Commercial applications and Industrial applications. The off-grid solar energy system can be 1kW/2kW/3kW/5kW/10kW/12kW/16kW/20kW/24kW/30kW/50kW/80kW/100kW/120kW/ 150kW/200kW/Customized off-gid power system Off-grid system is suitable for areas without grid-connected or unstable grid-connected power. Off grid system is usually composed of solar panels, connector, inverter, batteries and mounting system. Description of 15kW solar panel system: Inverter power: 25kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
