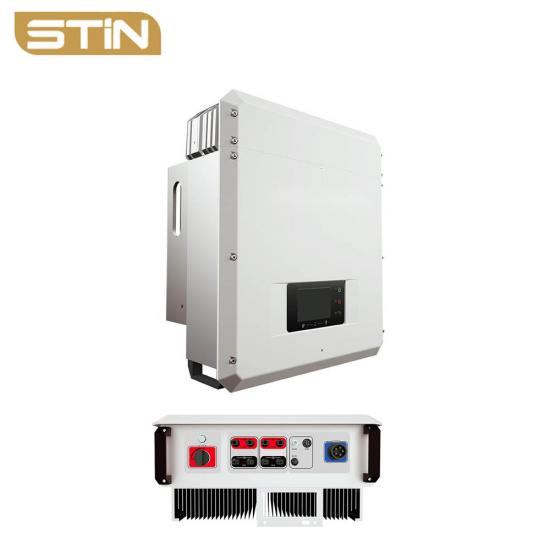

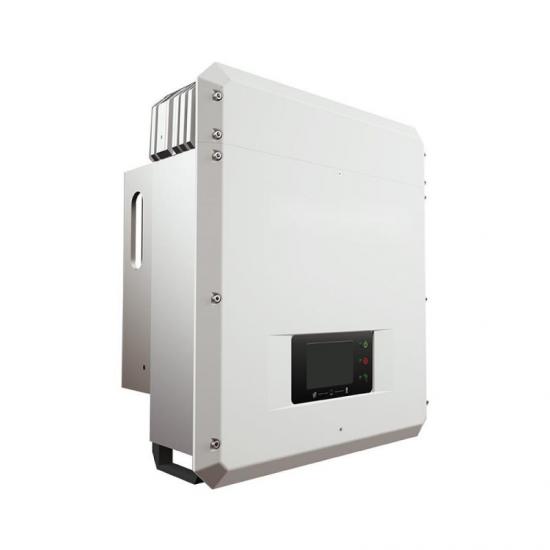

St17ktl Solar Inverter 3 Phase 17000W on Grid Energy Storage System with Good Price

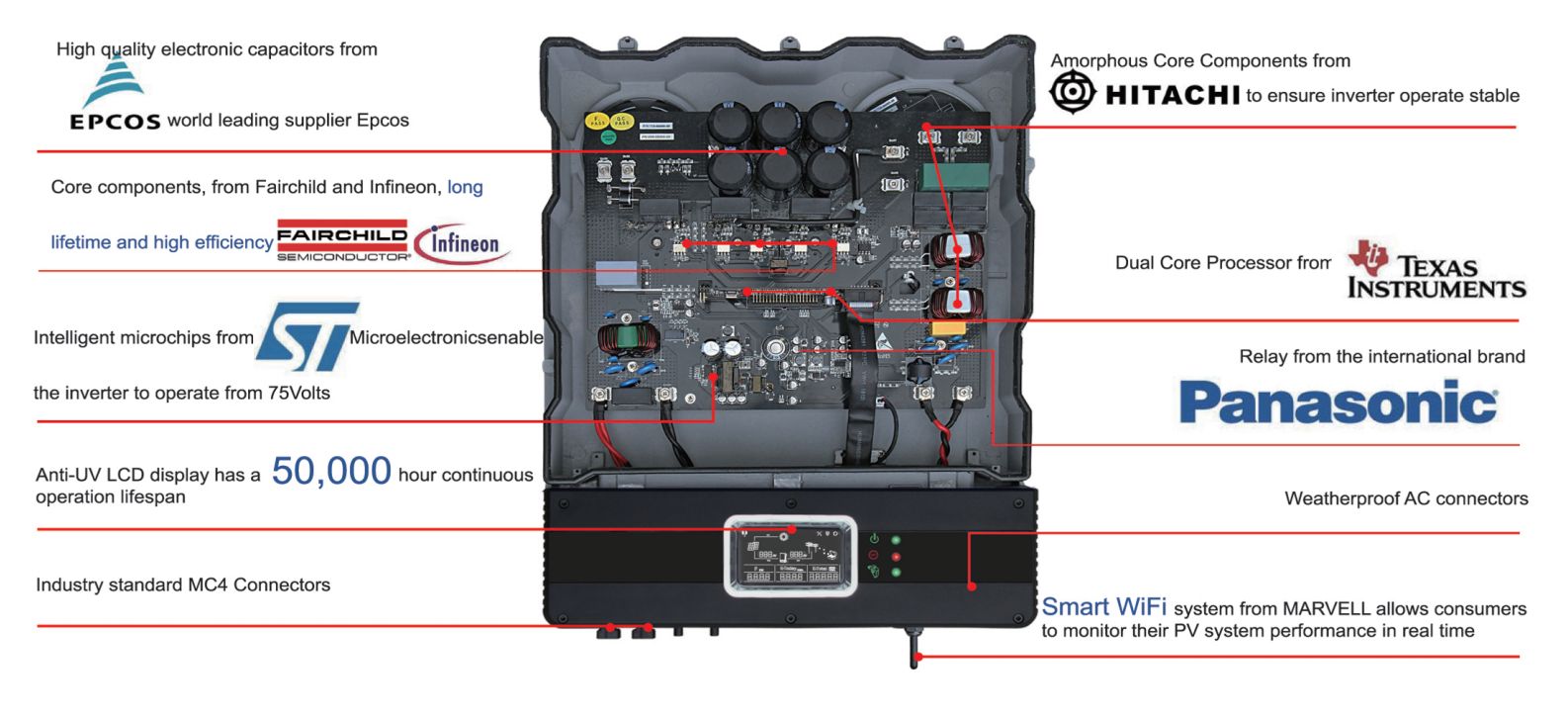

Characters Max 97.8% efficiency Real time precise MPPT algorithm for max harvest Wide input voltage operation range Outdoor install protectio due to IP65 LCD Screen makes simple and clear showing Easy installation and maintenance due to“Plug & Play”connection Interface selection-Wi-Fi/GPRS Built in zero export function(optional) Rust-free aluminum covers Flexible monitoring solution Intelligent grid management Reactive power capability Self power reducer when over frequency Remote active/reactive power limit control Component brand Specification Model No ST1000TL ST1500TL ST2200TL ST3000TL ST3600TL ST4400TL ST5000TL ST6000TL DC side/Input parameters Max. DC power [W] 1200 1800 2500 3400 3680 4500 5500 6000 Max. DC voltage [Vdc] 450 450 500 550 Min. System start voltage [Vdc] 75/150 75/100 MPPT voltage range[Vdc] 100-450 100-450 100-500 100~550 Max. input current [A] 10 10 13 15 13.5/13.5 13.5/13.5 15/15 15/15 Number of MPP trackers 1 2 Strings per MPP tracker 1 AC side/output parameters Nominal output power [W] 1000 1500 2200 3000 3300 4000 4600 5500 Maximum output power [W] 1100 1650 2420 3300 3680 4400 5000 6000 Nominal output voltage/range [V] 208,220,230,240/180~270 AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 6 8 12 17 16 21 23 26 AC connection(with PE) Single phase Current distortion(THDi) [%] <1.5 <2.5 Power factor [%] ~1(Adjustable from 0.8 leading to 0.8 lagging) Efficiency Maximum conversion efficiency[%]   97.3 97.3 97.4 97.5 97.8 97.5 97.6 European efficiency[%] 97 97 97.1 97.2 97.3 97.2 97.3 MPPT efficiency[%] 99.9 Safety and protection 99.9 DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 382*317*151 382*317*166 Weight (kg) 10 13.5 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Project

Characters Optimized transformer-less topology structure Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range. SIC components enhance power density. 0 ampere leakage current design protect against tripping Easy installation and free maintenance  WiFi or GPRS (optional) communication  Multi-inverters parallel connection available  5 years standard warranty, 15years extention optional  High standard components design maximally reduce damage resulted from false-operation Component brands Specification Model No ST4KTL ST5KTL ST6KTL ST8KTL ST10KTL DC side/Input parameters Max. DC power [W] 5500 6500 7500 9500 11500 Max. DC voltage [Vdc] 1000 1000 1000 1000 1000 Min. System start voltage [Vdc] 250 250 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 250~850 250~850 Max. input current [A] 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 Number of MPP trackers 2 2 2 2 2 Strings per MPP tracker 1 1 1 1 1 AC side/output parameters Nominal output power [W] 4000 5000 6000 8000 10000 Maximum output power [W] 5000 5500 7000 8800 11000 Nominal output voltage/range [V] 400Vac/ 380-440V AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 8 10 12 15 17 AC connection(with PE) 3W/N/PE Three phase Three phase Three phase Three phase Current distortion(THDi) [%] <1.5 <1.5 <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98 98.2 98.2 98.3 98.4 European efficiency[%] 97.5 97.7 97.7 97.8 97.9 MPPT efficiency[%] 99.9 99.9 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 480*400*180 Weight (kg) 22 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects

Characters Transformerless with three level topology Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specifications DC side/Input parameters Max. DC power [W] 13200 16500 Max. DC voltage [Vdc] 1000 1000 Min. System start voltage [Vdc] 250 250 MPPT voltage range[Vdc] 250~850 250~850 Max. input current [A] 20/20 20/20 Number of MPP trackers 2 3 Strings per MPP tracker 2 2 AC side/output parameters Nominal output power [W] 12000 15000 Maximum output power [W] 13200 16500 Nominal output voltage/range [V] 50/60 Hz ; 400 Vac AC grid frequency/range [Hz] 45/55 Hz ; 280~490 Vac (Adj) Power factor [%] 0.8leading ... 0.8laging Harmonics <1.5% Maximum output current [A] 20 23 AC connection(with PE) Current distortion(THDi) [%] <1.5 <1.5 Power factor [%] >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.4 98.5 European efficiency[%] 97.9 98 MPPT efficiency[%] 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 510*484*217.5cm Weight (kg) 35 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;EN50439; VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects

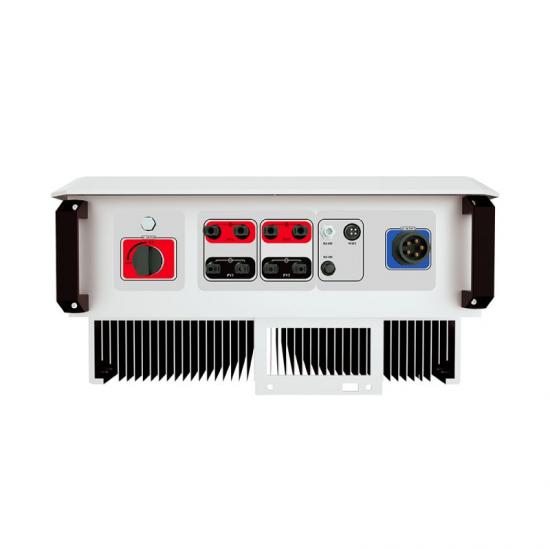

Characters Transformerless with three level topology Max efficiency up to 98.6% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specification Model No ST17KTL ST20KTL ST25KTL DC side/Input parameters Max. DC power [W] 18500 22000 25000 Max. DC voltage [Vdc] 1000Vdc. 1000Vdc. 1000Vdc Min. System start/Shut down voltage [Vdc] 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 Max. input current [A] 25A*2 25A*2 25A*2 Number of MPP trackers 2 2 2 Strings per MPP tracker 2 2 2 AC side/output parameters Nominal output power [W] 17000 20000 25000 Maximum output power [W] 18500 22000 27000 Nominal output voltage/range [V] 400V/ 280-490V（adjustable) AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 25 30 36 AC connection(with PE) 3W/N/PE 3W/N/PE 3W/N/PE Current distortion(THDi) [%] <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.5 98.6 98.8 European efficiency[%] 98.1 98.2 98.3 MPPT efficiency[%] 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters Dimension(L/W/H)[mm] 505*525*245 Weight (kg) 37 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects

Characters Transformerless with three level topology Max efficiency up to 98.6% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication

Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)

What is off grid system? Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable.It can be for Home applications, Commercial applications and Industrial applications. The off-grid solar energy system can be 1kW/2kW/3kW/5kW/10kW/12kW/16kW/20kW/24kW/30kW/50kW/80kW/100kW/120kW/150kW/200kW/ Customized off-gid power system Off-grid system is suitable for areas without grid-connected or unstable grid-connected power. Off grid system is usually composed of solar panels, connector, inverter, batteries and mounting system. Description of 10kW solar panel system: Inverter power: 10kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a low frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. The wifi/GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device,, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
