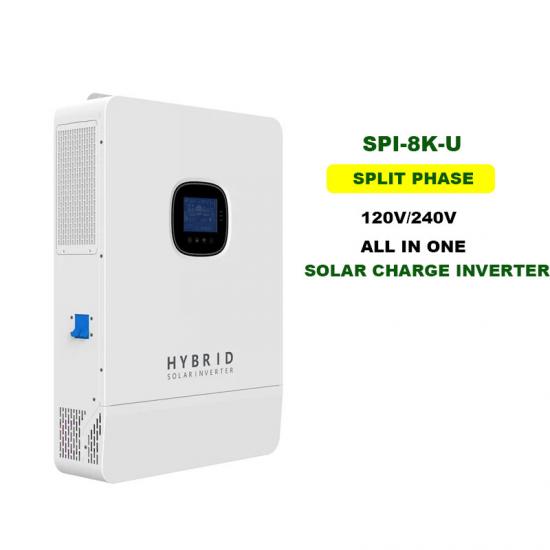

Hybrid Split-Phase 8KW 200A 120V 240V Hybrid Solar Inverter for Hybrid Solar System

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

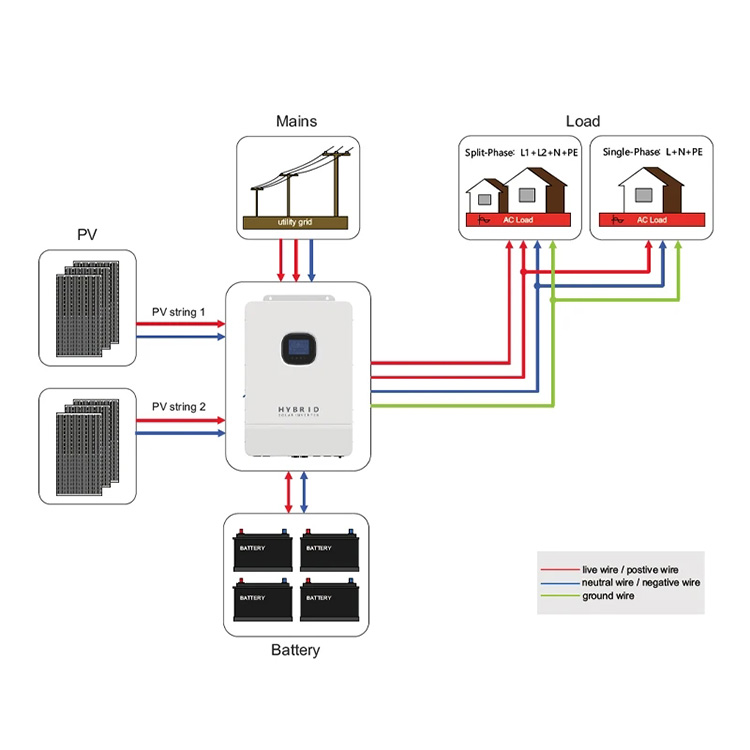

The solar energy storage inverter can be used for both on grid and off grid solar systems, it integrates controller and inverter. During the daytime, the PV array generates electricity to provide power either to the loads, or  to the grid or charge the battery.  The battery can be charged either by PV power or by grid, the power stored in the battery can be released whenever the loads require it.  Moreover ,the inverter can give three phase unbalanced output accroding to set up, to make a most flexible power solution.

This is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable.With compact design and high-power density, this series supports 1.3 DC/AC ratio,saving device investment.It supports three phase unbalanced output, extending the application scenarios.Equipped with CAN port(x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.

This is a multifunctional inverter,combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

This is a multifunctional inverter,combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

The 5kw solar inverter is integrated with MPPT solar charge controller inside. It can also connect to grid to take grid as backup when battery is over discharged. The output voltage is 220V, maximum 6pcs in parallel. 3pcs in parallel can get three phase 380v output. All of parameter such as working mode, charging current, over discharge voltage can be set as you wish.

Characters Optimized transformer-less topology structure Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range. SIC components enhance power density. 0 ampere leakage current design protect against tripping Easy installation and free maintenance  WiFi or GPRS (optional) communication  Multi-inverters parallel connection available  5 years standard warranty, 15years extention optional  High standard components design maximally reduce damage resulted from false-operation Component brands Specification Model No ST4KTL ST5KTL ST6KTL ST8KTL ST10KTL DC side/Input parameters Max. DC power [W] 5500 6500 7500 9500 11500 Max. DC voltage [Vdc] 1000 1000 1000 1000 1000 Min. System start voltage [Vdc] 250 250 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 250~850 250~850 Max. input current [A] 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 Number of MPP trackers 2 2 2 2 2 Strings per MPP tracker 1 1 1 1 1 AC side/output parameters Nominal output power [W] 4000 5000 6000 8000 10000 Maximum output power [W] 5000 5500 7000 8800 11000 Nominal output voltage/range [V] 400Vac/ 380-440V AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 8 10 12 15 17 AC connection(with PE) 3W/N/PE Three phase Three phase Three phase Three phase Current distortion(THDi) [%] <1.5 <1.5 <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98 98.2 98.2 98.3 98.4 European efficiency[%] 97.5 97.7 97.7 97.8 97.9 MPPT efficiency[%] 99.9 99.9 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 480*400*180 Weight (kg) 22 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects

Such hybrid solar system can work as both solar on grid system and solar off grid system. It can utilize electricity price difference, charge battery at low price and discharge at high price to maximize system profit, compensate local transformer limit. It can  provide back-up power supply for unstable grid, during grid failure, seamless switches to off-grid mode within 20ms to realize uninterruptable supply
