Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
20daysOrder(MOQ):
1Characters
-120V/240V Split phase, 220V Single phase Pure sine wave inverter.
- Self-consumption and Feed-in to the grid.
- Auto restart while AC is recovering.
- Programmable supply priority for Battery or Grid.
- Programmable multiple operation modes: On grid, off grid and UPS.
- Configurable battery charging current/voltage based on applications via LCD setting.
- Configurable AC/Solar Charger priority via LCD setting.
- Compatible to mains voltage or generator power.
- Overload/Over temperature/Short circuit protection.
- Smart battery charger design for optimized battery performance
- With limit function, prevent excess power overflow to the grid.
- Supporting wifi monitoring and Build-in 2 strings of MPP trackers
- Smart settable three stages MPPT charging for optimized battery performance
- Maximum 5.5KW charging capacity.
-Time Of Use setting with settable inverter maximum output power, allow user to use grid power more efficient and recover the investment.
-Parallel connection (for both on grid mode and off grid mode) is optional to increase the power.
|

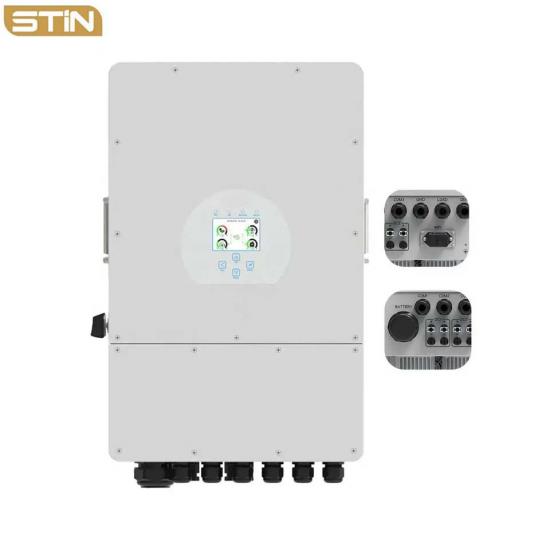

Model |
SUN-12K-SGO4LP3 |
|
-EU/AU |
|
|
Battery Input Data of solar inverter |
|
|
Battery Type |
Lead-acid or Li-lon |
|
Battery Voltage Range (V) |
40~60 |
|
Max. Charging Current(A) |
240 |
|
Max.Discharging Current (A) |
240 |
|
Charging Curve |
3 Stages /Equalization |
|
External Temperature Sensor |
Yes |
|
Charging Strategy for Li-lon Battery |
Self-adaption to BMS |
|
PV String Input Data |
|
|
Max. DC Input Power(W) |
15600 |
|
PV Input Voltage(V |
550(150~800) |
|
MPPTRange (V |
200-650 |
|
Start-up Voltage (V) |
160 |
|
PV Input Current(A) |
26+13 |
|
Max.PVISC(A) |
34+17 |
|
No.of MPPT Trackers |
2 |
|
No.of Strings Per MPPT Tracker |
1+1 |
|
AC Output Data |
|
|
Rated AC Output and UPS Power(W) |
12000 |
|
Max.AC Output Power(W) |
13200 |
|
Peak Power (off grid) |
2 times of rated power,10 S |
|
AC Output Rated Current(A) |
18 |
|
Max.AC Current (A) |
27 |
|
Max. Continuous AC Passthrough (A) |
50 |
|
Output Frequency and Voltage |
50/60Hz;230/400Vac(Three phase) |
|
Grid Type |
Three Phase |
|
Current Harmonic Distortion |
THD<3%(Linear load<1.5%) |
|
Efficiency |
|
|
Max. Effciency |
97.60% |
|
Euro Efficiency |
97.00% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
PV Input Lightning Protection |
Integrated |
|
Anti-islanding Protection |
Integrated |
|
PV String Input Reverse Polarity Protection |
Integrated |
|
Insulation Resistor Detection |
Integrated |
|
Residual Current Monitoring Unit |
Integrated |
|
Output Over Current Protection |
Integrated |
|
Output Shorted Protection |
Integrated |
|
Output OverVoltage Protection |
Integrated |
|
Surge protection |
DC Typell/ ACType II |
|
Certifications and Standards |
|
|
Grid Regulation |
IEC61727,IEC62116,IEC60068,IEC61683,NRS 097-2-1 |
|
Safety EMC/Standard |
IEC62109-1/-2,IEC61000-6-1,IEC61000-6-3,IEC61000-3-11,IEC61000-3-12 |
|
General Data |
|
|
Operating Temperature Range(ºC) |
-25~60ºC,>45ºC Derating |
|
Cooling |
Smart cooling |
|
Noise(dB) |
<45 dB |
|
Communication with BMS |
RS485;CAN |
|
Weight(kg) |
34.5 |
|
Size (mm) |
422W×658H×281D |
|
Protection Degree |
IP65 |
|
Installation Style |
Wall-mounted |
|
Warranty |
5 years |
An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.
The solar energy storage inverter can be used for both on grid and off grid solar systems, it integrates controller and inverter. During the daytime, the PV array generates electricity to provide power either to the loads, or to the grid or charge the battery. The battery can be charged either by PV power or by grid, the power stored in the battery can be released whenever the loads require it. Moreover ,the inverter can give three phase unbalanced output accroding to set up, to make a most flexible power solution.
This is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable.With compact design and high-power density, this series supports 1.3 DC/AC ratio,saving device investment.It supports three phase unbalanced output, extending the application scenarios.Equipped with CAN port(x2) BMS and parallel, x1 RS485 port for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
This is a multifunctional inverter,combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
1. Supports lead acid battery and li-ion battery connections. 2. With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery. 3. Support split-phase and single-phase pure sine wave output. 4. Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase. 5. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity functions. 6. Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high power modules.
Characters Transformerless with three level topology Max efficiency up to 98.6% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication
The LiFePO4 battery ESS (Energy Storage System) includes LiFePO4 battery, PCS. The system includes 100KWh LiFePO4 battery, 50KW PCS, liquid cooling system and Fire protection system. The system includes BMS, PCS, and EMS.
This kind of solar system is integrated with wind turbine. Solar panel and wind turbine supply power to loads and charge battery together. It is suitable for those area with high-quality wind resources.
