GBP series lithium iron phosphate batteries are a new type of environmentally friendly backup power supply launched for energy storage and power backup applications. The system adopts environmentally friendly lithium iron phosphate batteries and equipped with a customized BMS system for effective management of the battery cells, providing superior product performance and safety and reliability compared to traditional batteries. The product has a high number of charge and discharge cycles, high power density and long service life. Unique design and innovation in compatibility, energy density, dynamic monitoring, safety, reliability and product appearance can bring users a better experience in energy storage applications.
Payment:
TT/PAYPAL/LCProduct Origin:
CHINAShipping Port:
ShanghaiLead Time:
25daysOrder(MOQ):
1● Modular design, higher integration, saving installation space;
● High-performance lithium iron phosphate cathode material, with good consistency of the core and a design life of more than 10 years.
● One-touch switching, front operation, front wiring, ease of installation, maintenance and operation.
● Various functions, over-temperature alarm protection, over-charge and over-discharge protection, short-circuit protection.
● Highly compatible, seamlessly interfacing with mains equipment such as UPS and photovoltaic power generation.
● Various forms of communication interfaces, CAN/RS485 etc. can be customized according to customer requirements, easy for remote monitoring.
● Maintenance free.
● Environmentally friendly and non-polluting materials, no heavy metals, green and environmentally friendly
● Cycle life of over 5000 cycles.
● Accurate estimation of the charge state of the battery pack, i.e. the remaining battery power, to ensure that the battery pack is maintained within a reasonable range.
● Built-in BMS management system with comprehensive protection and monitoring and control functions.

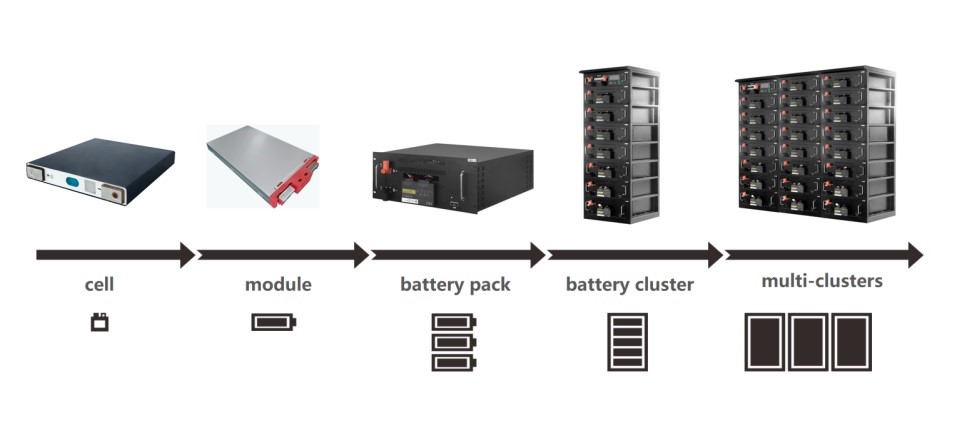

System composition
Control system
240V1000AH components

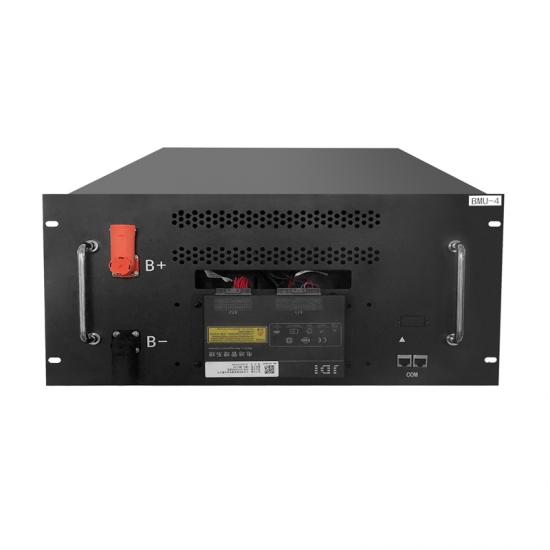

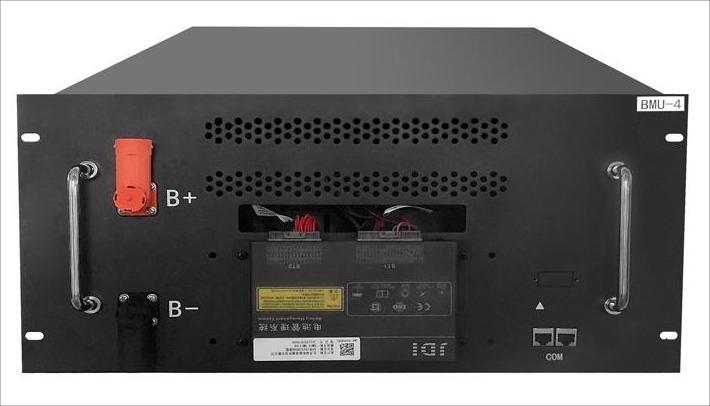

Battery pack
|
Model Number |
GBP48200 (15S2P) |
|
Cell version |
105AH |
|
Rated power (KWH) |
9.6 |
|
Nominal capacity(AH) |
200 |
|
Nominal voltage (VDC) |
48 |
|
Operating voltage range(VDC) |
43.5-53.2 |
|
Operating temperature |
-20~65℃ |
|
IP grade |
IP20 |
|
Reference weight(Kg) |
90 |
|
Reference size(mm) ( Depth*Wide*Height) |
510*640*252 |

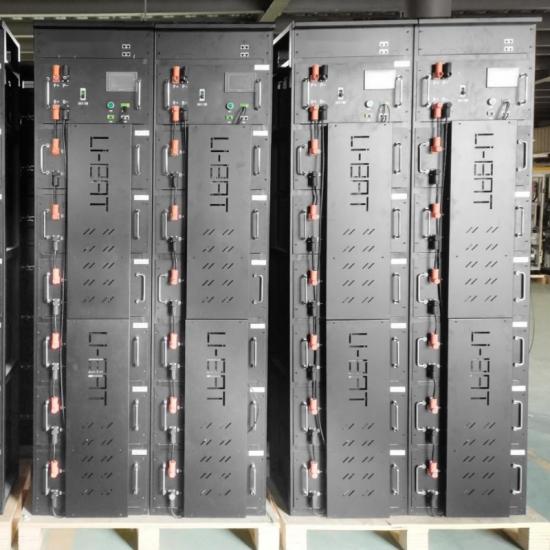

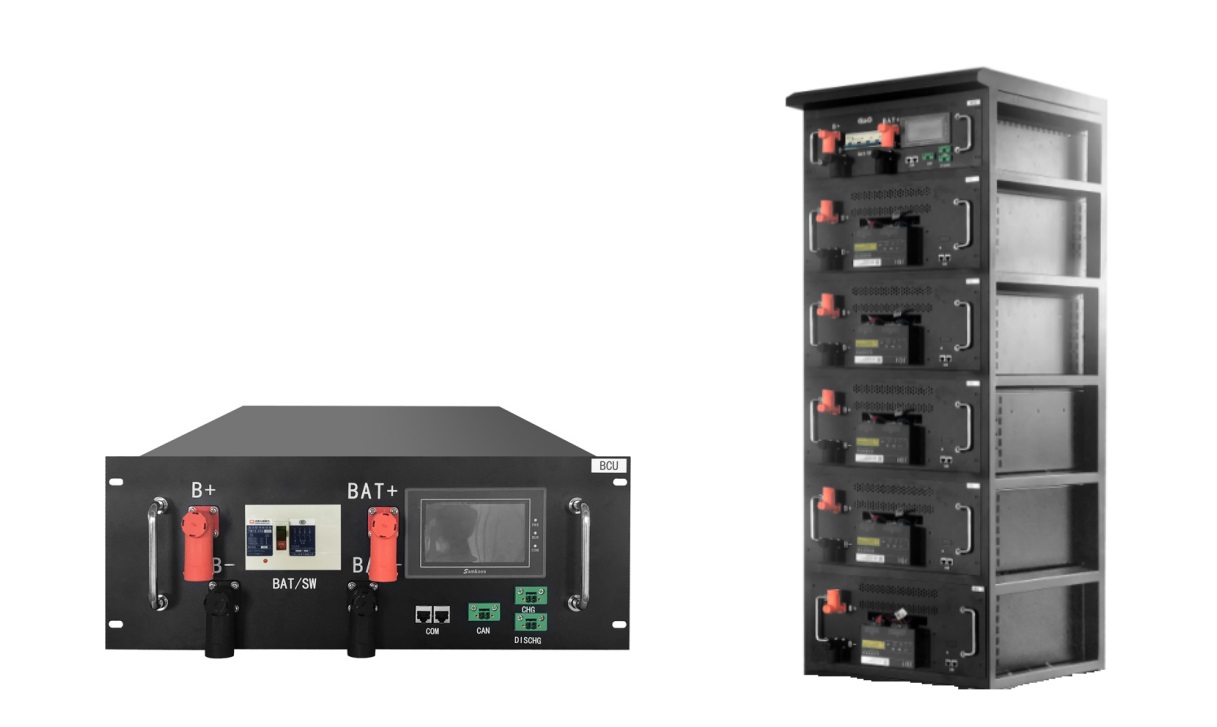

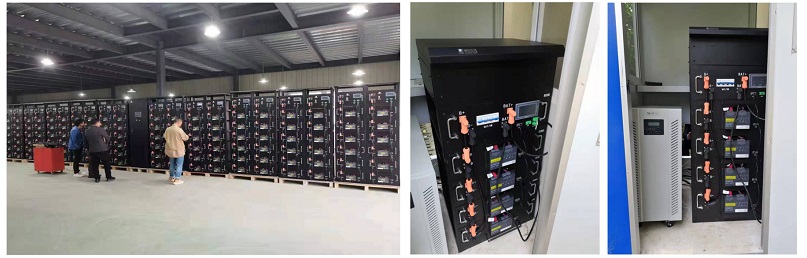

Battery cluster (composed of 5pcs battery packs and 1pc BCU BOX)
|
Model Number |
GBP240200 |
|
Cell type |
LIFEPO4 |
|
Rated power(KWH) |
48 |
|
Nominal capacity(AH) |
200 |
|
Nominal voltage(VDC) |
240 |
|
Operating voltage range(VDC) |
195~285 |
|
Recommend charging voltage (VDC) |
262.5 |
|
Recommended discharge cut-off voltage(VDC) |
225 |
|
Standard charge current (A) |
100 |
|
Maximum continuous charge current (A) |
200 |
|
Standard discharge current (A) |
100 |
|
Maximum continuous discharge current (A) |
200 |
|
Operating temperature |
-20~65℃ |
|
IP grade |
IP20 |
|
Communication interface |
RS485/CAN Optional |
|
Reference weight (Kg) |
600 |
|
Reference size ( Depth*Wide*Height) |
530*680*1800 |

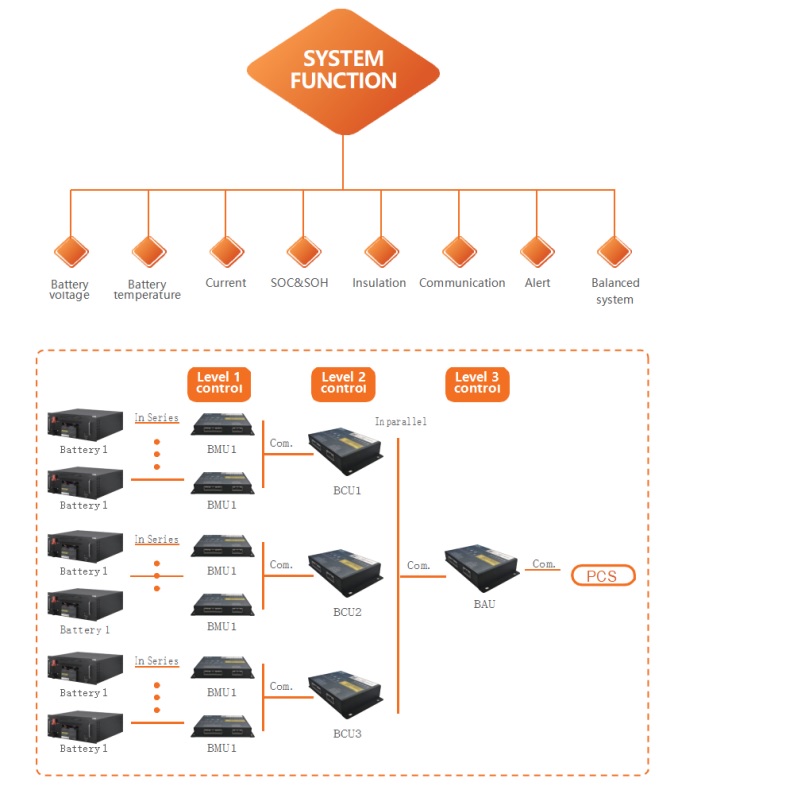

BMS
|
Components |
Function Description |
|

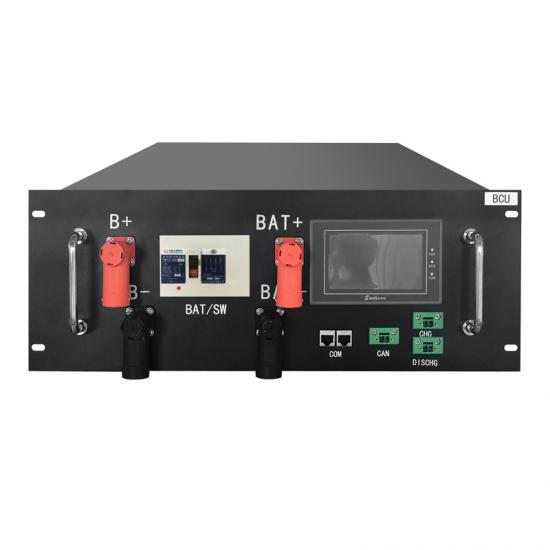

BCU |
Master-slave communication, external communication, state estimation, safety management, charge-discharge management, control output, control input, total voltage detection, insulation detection |
|
BMU |
Master- slave communication, 4~48 series single cell voltage acquisition, 4 channels/ channel temperature acquisition |
|
BAU |
The battery management controller (BAU for short). BAU as a battery management system Assembly control module, connect to BCU, communicate with PCS and monitor screen |
|
Wire harness |
Voltage detection, temperature detection, communication connection, power supply connection, sensor continuity, control connection |
|
LCD |
Data display, parameter configuration, fault alarm |

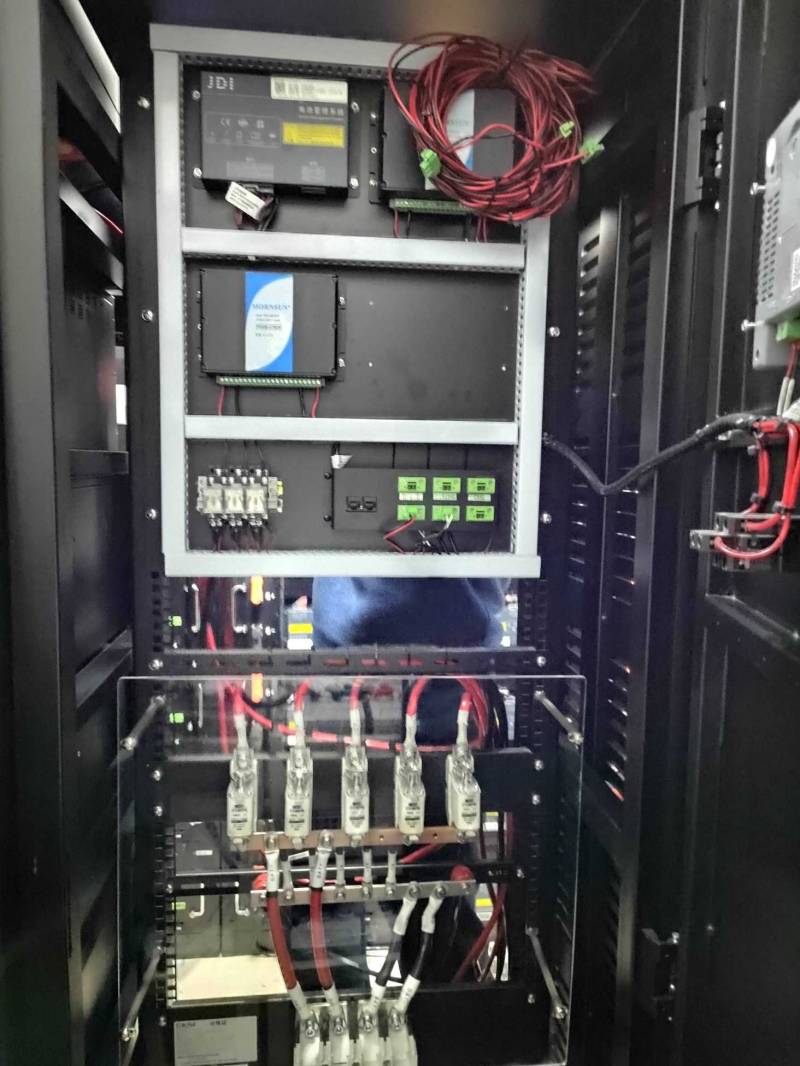

DC confluence cabinet (integrated with BAU, combine 5pcs clusters, connection with controller and inverter), size is 530*680*1800mm. 150kg
Conclusion:
240V1000AH is composed of 5 clusters+1 dc confluence cabinet
Each cluster is composed of 5pcs 48V200AH battery pack and 1pc BCU box
This high voltage lifepo4 battery system is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system.It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems. It has high reliability and long life. Products developed for applications such as power grid energy storage, industrial and commercial energy storage, home high voltage energy storage, high voltage UPS, and data room.
