Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15days

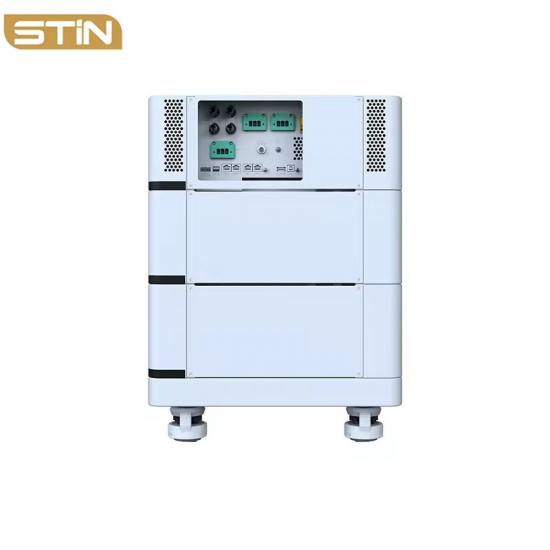

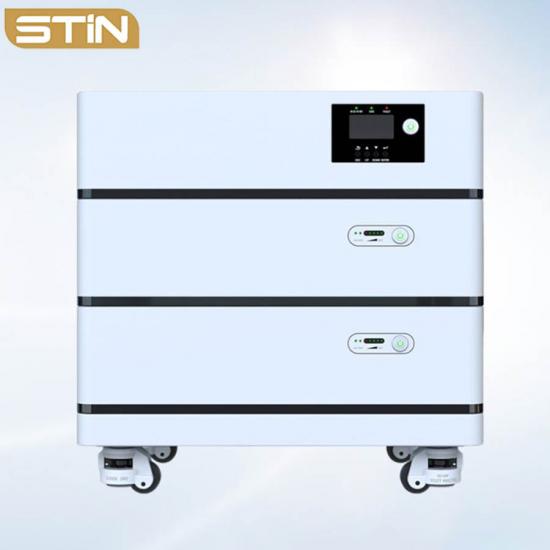

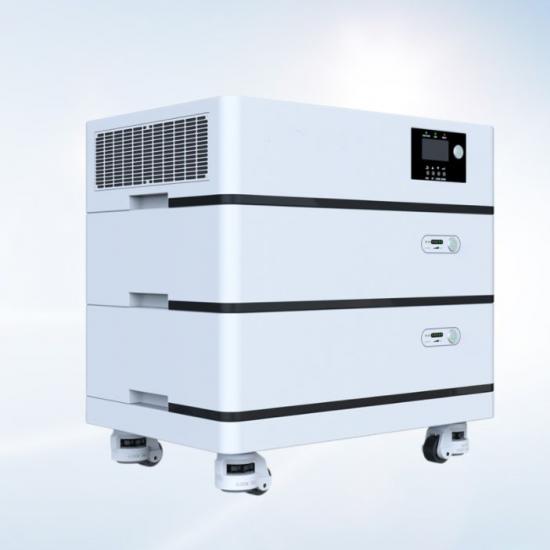

1. Upgradeable design: You can start with a single inverter and battery unit and expand your system as your needs grow. Each inverter has a power rating of 6 kW and can be paralleled with up to 3 units for a total of 18 kW. Each battery has a capacity of 5.5 kWh and can be stacked and paralleled with up to 12 units for a total of 66 kWh.

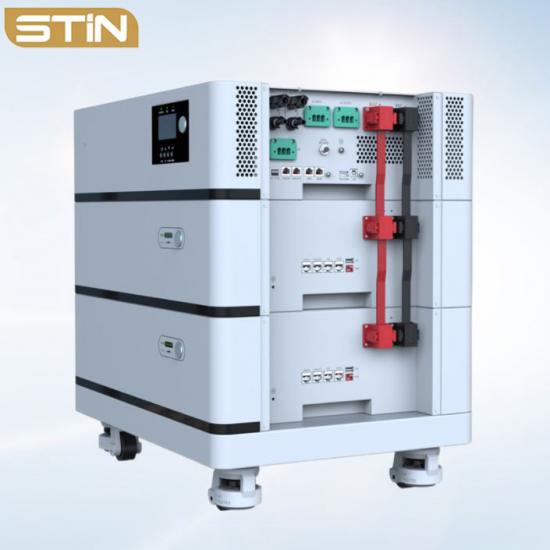

2. Plug and play: Our system does not require any matching or commissioning. Just connect the inverter and battery units with the included cables and you are ready to go. The system will automatically detect and synchronize the units for optimal performance.
3. Smart management: You can monitor and control your system from anywhere with our user-friendly app.
You can check the status of your system, adjust the settings, and view the historical data. You can also set up alerts and notifications to keep you informed of any issues or events.
|
Inverter Module |
|
|
Model |
ESS-IH6048 |
|
Rated Power |
6KVA/6KW |
|
System DC Voltage |
48Vdc |
|
Parallel Option |
Max 6 units (Software Allow),Max 3 units (Mounting Base allow) |
|
Monitoring Option |
WiFi/GPRS |
|
Inverter Output |
|
|
AC Output |
220V-230V-240VAC |
|
Surge Power |
12000VA |
|
Peak Conversion Efficiency |
94% |
|
Transfer Time |
10ms (for personal computers) 20ms (for home appliances) |
|
Waveform |
Pure sine wave |
|
Self Consumption at0 Load |
<70watt |
|
Solar Charger |
|
|
Type of PV Array Input Terminal |
MC4 |
|
Max. PV Array Open Circuit Voltage |
500Voc |
|
Max.PV Input Current/Per String |
16A |
|
Number of PV Array Input |
2 Strings |
|
Max.PV Array Power |
Each String: 4000watt; Total 8000watt |
|
MPPT Working Range |
120-450VDC |
|
Battery Overcharge Protection |
60VDC |
|
Max Solar Charge Current |
100A |
|
AC Charger(Grid/Generator) |
|
|
Max.Grid Charge Current |
80A |
|
Max.(AC+PV) rrent |
100A |
|
Protection |
Overload,Short circuit,Overcurrent,Overvoltage,Undervoltage, |
|
Over-Frequency,Under-Frequency,Overheat,Lightning,Surge Power |
|
|
Physical |
|
|
Dimension |
630x450x165mm |
|
Net Weight |
16kg |
|
Communication Interface |
CAN/RS485/USB |
|
Environment |
|
|
Humidity |
5% to 95%Relative Humidity (non-condensing) |
|
Altitude |
<2000m |
|
Operating Temperature |
0℃-55℃ |
|
Storage Temperature |
-15℃-60℃ |
|
Noise |
<60db |
|
Certificate |
CE,IEC62109-1,IEC62109-2 |
|
Battery Module |
|
|
Battery Voltage |
51.2V |
|
Battery Capacity |
104Ah |
|
Max.Energy |
5.5KWh |
|
Max.Capacity |
106Ah |
|
Available Capacity |
100Ah |
|
Available Energy |
5KWh |
|
Working Voltage Range |
40-58.4V |
|
Discharge Cut-off Voltage |
40V |
|
Parallel Max.Units |
Max 12 units(Software Allow),Max 6 units(Mounting Base allow) |
|
Max. Charge and Discharge Current |
100A |
|
Peak Discharge Current / Time |
250A/150ms |
|
Cycle Life |
6000cycles 80%DOD,0.2C |
|
IP Rating |
IP 20 |
|
Dimension |
630x450x165mm |
|
Communication BMS |
RS485/CAN |
|
Warranty |
5 Years |
|
Weight |
48kg |
|
Operation Temperature Charge |
0℃-55℃ |
|
Operation Temperature Discharge |
-20-55℃ |
|
Storage Environment |
-20~+55C℃ |
|
Certification |
CE(EMC)/UN38.3/MSDS/ROHS |
|
Mounting Base |
|
|
Dimension |
630x450x132mm |
This high voltage lifepo4 battery system is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system.It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems. It has high reliability and long life. Products developed for applications such as power grid energy storage, industrial and commercial energy storage, home high voltage energy storage, high voltage UPS, and data room.
GBP series lithium iron phosphate batteries are a new type of environmentally friendly backup power supply launched for energy storage and power backup applications. The system adopts environmentally friendly lithium iron phosphate batteries and equipped with a customized BMS system for effective management of the battery cells, providing superior product performance and safety and reliability compared to traditional batteries. The product has a high number of charge and discharge cycles, high power density and long service life. Unique design and innovation in compatibility, energy density, dynamic monitoring, safety, reliability and product appearance can bring users a better experience in energy storage applications.
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
The LiFePO4 battery ESS (Energy Storage System) includes LiFePO4 battery, PCS. The system includes 100KWh LiFePO4 battery, 50KW PCS, liquid cooling system and Fire protection system. The system includes BMS, PCS, and EMS.
The LiFePO4 battery ESS (Energy Storage System) includes LiFePO4 battery, PCS. The system includes 100KWh LiFePO4 battery, 50KW PCS, liquid cooling system and Fire protection system. The system includes BMS, PCS, and EMS.
Characters Transformerless with three level topology Max efficiency up to 98.6% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specification Model No ST17KTL ST20KTL ST25KTL DC side/Input parameters Max. DC power [W] 18500 22000 25000 Max. DC voltage [Vdc] 1000Vdc. 1000Vdc. 1000Vdc Min. System start/Shut down voltage [Vdc] 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 Max. input current [A] 25A*2 25A*2 25A*2 Number of MPP trackers 2 2 2 Strings per MPP tracker 2 2 2 AC side/output parameters Nominal output power [W] 17000 20000 25000 Maximum output power [W] 18500 22000 27000 Nominal output voltage/range [V] 400V/ 280-490V（adjustable) AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 25 30 36 AC connection(with PE) 3W/N/PE 3W/N/PE 3W/N/PE Current distortion(THDi) [%] <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.5 98.6 98.8 European efficiency[%] 98.1 98.2 98.3 MPPT efficiency[%] 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters Dimension(L/W/H)[mm] 505*525*245 Weight (kg) 37 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
