At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office…
With APP monitor and control function through WIFI
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15daysOrder(MOQ):
1The ACDC Hybrid Solar Air Conditioner is different as the regular DC inverter air conditioners. During the day.it runs directly on DC power from solar panels. With theintelligent Power Management technology, this systemcan directly utilize the DC power from the solar panels.no longer need an inverter, controller or battery.During the sunshine day, when the solar powergenerated is bigger than the air conditioner powerconsumption, the ACDC hybrid solar air conditioner canget most power from the solar panels, the efficiencyhigh up to SEER36 rating. The unit can be connectedwith up to 380v/10A solar DC power. This system isdesigned for hybrid operation by utilizing the solarproviding all the power required during sunshine hours.This system primarily uses solar power, and mixes it withnormal 220v~240v AC power if needed.
Specification of solar air conditioner
| Model | Unit | ACDCBLW-12K | ACDCBLW-18K | ACDCBLW-24K | |
| Climate Type | Tropical</= 58ºC |
|
T3/T1 | T3/T1 | T3/T1 |
| Application area | m2 | 12-20 | 20-30 | 30-42 | |
|
Power Supply |
AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ |
| DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V | |
| DC Power Current | A | </=10A | </=10A | </=10A | |
| Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | |
|
Rated Cooling |
Capacity(T1) |
W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) |
| BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||
| Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | |
|
Capacity(T3) |
W | 2910 | 4290 | 5130 | |
| BTU | 9900 | 14700 | 17500 | ||
| Power input(T3) | W | 1050 | 1630 | 1940 | |
|
Rated Heating |
Capacity |
W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) |
| BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | ||
| Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | |
| T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | |
| T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | 2.65/9.00 | |
| COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | |
| Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | |
|
Compressor |
Model | / | WHP04200 | WHP05600 | 5RD198 |
| Type | / | 2xRotary Inverter | 2xRotary Inverter | 2xRotary Inverter | |
|
Indoor fan motor |
Model |
|
BLDC-15W | BLDC-45W | BLDC-45W |
| Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | |
| Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 | |
| Indoor noise level (Turbo) | dB(A) | ≤42.5 | ≤46 | ≤50 | |
|
Indoor unit |
Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 |
| Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 | |
| Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
|
Outdoor fan motor |
Model | / | BLDC-40W | BLDC-55W | BLDC-75W |
| Speed | r/min | 880 | 880 | 850 | |
| Outdoor air flow | m3/h | 2100 | 2200 | 3300 | |
| Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | |
|
Outdoor unit |
Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 |
| Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | |
| Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | |
| Refrigerant type | / | R410A | R410A | R410A | |
| Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | |
|
Refrigerant copper pipe |
Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 20 | 25 | |
| Max. difference in level | m | 8 | 10 | 10 | |
| Drain pipe size | mm | 16 | 16 | 16 | |
| Refrigerant connction copper pipe length | m | 3 | 4 | 4 | |
| Connection wire length | m | 4 | 5 | 5 | |
| Electronic Expansion Valve | / | Yes | Yes | Yes | |
| Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | |
Solar panel and system installation
Below is the design how our solar power system should be installed. If you want to use solar air conditioner only in day time (approximate from 7:00am to 17:00pm), then no need to install grid power to our system. If you want to ran at night with electricity or generator or youwant to work mix power to get best cooling in heavy cloudy days you can install grid power part for 24hour working.
Solar panel choosing
STIN hybrid ACDC solar air conditioners unit suit for both Poly and mono solar panel on the market from 250w to 450w. But all the solar panel should be in series connection, parallel is not allowed.
|
Model |
Capacity |
Solar DC voltage |
DC Current |
Input Power request |
|
DGWA1-ACDCBLW-12K WiFi |
12000btu 1.5HP 1Ton |
80V-380V |
</=10A |
940(190-1270) W |
|
DGWA1-ACDCBLW-18K WiFi |
18000btu 2.0Hp 1.5Ton |
80V-380V |
</=10A |
1400(220-2100) W |
|
DGWA1-ACDCBLW-24K WiFi |
24000btu 3.0Hp 2.0Ton |
80V-380V |
</=10A |
1790(300-3200) W |

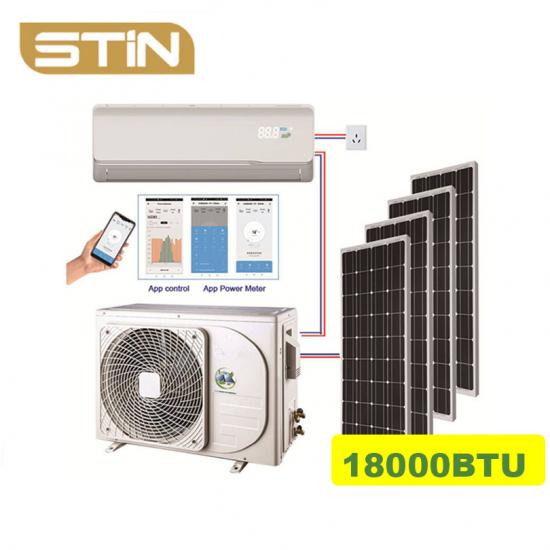

WiFi control and APP power meter
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
Characters Transformerless with three level topology Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specifications DC side/Input parameters Max. DC power [W] 13200 16500 Max. DC voltage [Vdc] 1000 1000 Min. System start voltage [Vdc] 250 250 MPPT voltage range[Vdc] 250~850 250~850 Max. input current [A] 20/20 20/20 Number of MPP trackers 2 3 Strings per MPP tracker 2 2 AC side/output parameters Nominal output power [W] 12000 15000 Maximum output power [W] 13200 16500 Nominal output voltage/range [V] 50/60 Hz ; 400 Vac AC grid frequency/range [Hz] 45/55 Hz ; 280~490 Vac (Adj) Power factor [%] 0.8leading ... 0.8laging Harmonics <1.5% Maximum output current [A] 20 23 AC connection(with PE) Current distortion(THDi) [%] <1.5 <1.5 Power factor [%] >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.4 98.5 European efficiency[%] 97.9 98 MPPT efficiency[%] 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 510*484*217.5cm Weight (kg) 35 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;EN50439; VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
The 3kw off grid solar system is usually for home use where there is no grid or grid is unstable. It can supply power to normal home loads such as washing machine, LED lights, fan, air conditioner. Inverter power: 3kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The on grid solar power system converts the solar energy into electrical energy, without the storage battery, and directly sends the electrical energy to the grid through the grid-connected inverter. Inverter power: 8kW AC output voltage: three phase Solar panel type: mono or poly
