At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office…
With APP monitor and control function through WIFI
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
15daysOrder(MOQ):

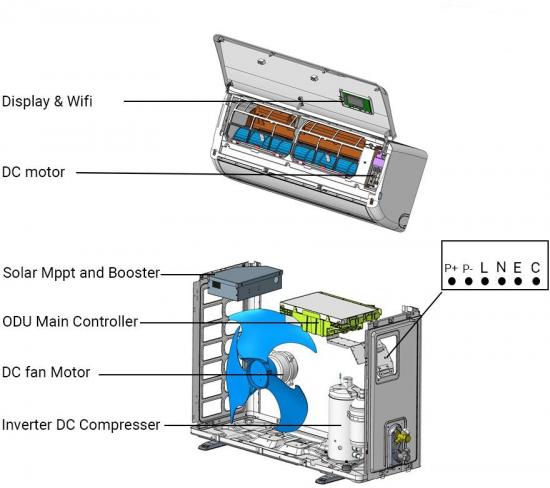

1Our AC DC Hybrid Solar Air Conditioner system is designed to use solar. When the grid voltage low to 165v, our system can still work well. Besides the compressor and control circuit, all the main components are DC powered, like high efficient DC fan motor, compressor and electronic expansion valve.There are several sensors in the system detect the circuit, control the refrigerant flow volume through the electronic expansion valve, thus achieve perfect combination of intelligent refrigerant flow and inverter technology, raise or lower the air conditioner’s cooling/heating capacity according to the actual conditions. The inverter controller manage compressor running speed, refrigerant flow volume and fan speed etc, these all can be managed throuah the sever a sensors detect the circuit, and adiust automatically according to the actual conditions. When the room temp. is approached to the setting temp, the system will automatically lower its capacity and power consumption, so the inverter Variable Refrigerant Flow (RF) technology itself can save 40% -50% compared to the regular air conditioner.
Specification of solar air conditioner
| Model | Unit | ACDCBLW-12K | ACDCBLW-18K | ACDCBLW-24K | |
| Climate Type | Tropical</= 58ºC |
|
T3/T1 | T3/T1 | T3/T1 |
| Application area | m2 | 12-20 | 20-30 | 30-42 | |
|
Power Supply |
AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ |
| DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V | |
| DC Power Current | A | </=10A | </=10A | </=10A | |
| Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | |
|
Rated Cooling |
Capacity(T1) |
W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) |
| BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||
| Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | |
|
Capacity(T3) |
W | 2910 | 4290 | 5130 | |
| BTU | 9900 | 14700 | 17500 | ||
| Power input(T3) | W | 1050 | 1630 | 1940 | |
|
Rated Heating |
Capacity |
W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) |
| BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | ||
| Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | |
| T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | |
| T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | 2.65/9.00 | |
| COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | |
| Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | |
|
Compressor |
Model | / | WHP04200 | WHP05600 | 5RD198 |
| Type | / | 2xRotary Inverter | 2xRotary Inverter | 2xRotary Inverter | |
|
Indoor fan motor |
Model |
|
BLDC-15W | BLDC-45W | BLDC-45W |
| Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | |
| Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 | |
| Indoor noise level (Turbo) | dB(A) | ≤42.5 | ≤46 | ≤50 | |
|
Indoor unit |
Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 |
| Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 | |
| Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
|
Outdoor fan motor |
Model | / | BLDC-40W | BLDC-55W | BLDC-75W |
| Speed | r/min | 880 | 880 | 850 | |
| Outdoor air flow | m3/h | 2100 | 2200 | 3300 | |
| Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | |
|
Outdoor unit |
Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 |
| Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | |
| Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | |
| Refrigerant type | / | R410A | R410A | R410A | |
| Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | |
|
Refrigerant copper pipe |
Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 20 | 25 | |
| Max. difference in level | m | 8 | 10 | 10 | |
| Drain pipe size | mm | 16 | 16 | 16 | |
| Refrigerant connction copper pipe length | m | 3 | 4 | 4 | |
| Connection wire length | m | 4 | 5 | 5 | |
| Electronic Expansion Valve | / | Yes | Yes | Yes | |
| Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | |

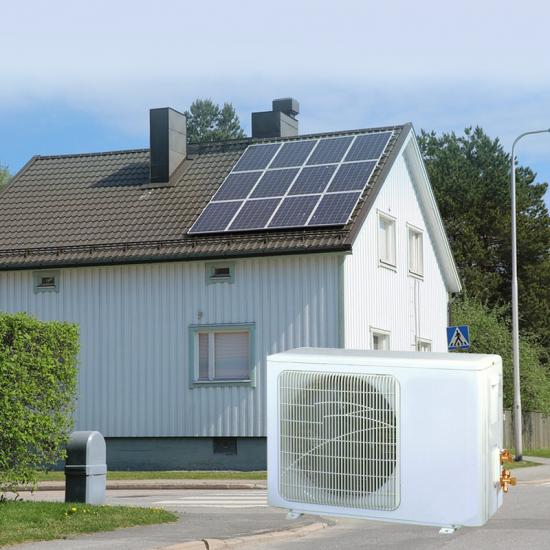

Solar panel and system installation
Below is the design how our solar power system should be installed. If you want to use solar air conditioner only in day time (approximate from 7:00am to 17:00pm), then no need to install grid power to our system. If you want to ran at night with electricity or generator or youwant to work mix power to get best cooling in heavy cloudy days you can install grid power part for 24hour working.
Solar panel choosing
STIN hybrid ACDC solar air conditioners unit suit for both Poly and mono solar panel on the market from 250w to 450w. But all the solar panel should be in series connection, parallel is not allowed.
|
Model |
Capacity |
Solar DC voltage |
DC Current |
Input Power request |
|
DGWA1-ACDCBLW-12K WiFi |
12000btu 1.5HP 1Ton |
80V-380V |
</=10A |
940(190-1270) W |
|
DGWA1-ACDCBLW-18K WiFi |
18000btu 2.0Hp 1.5Ton |
80V-380V |
</=10A |
1400(220-2100) W |
|
DGWA1-ACDCBLW-24K WiFi |
24000btu 3.0Hp 2.0Ton |
80V-380V |
</=10A |
1790(300-3200) W |
WiFi control and APP power meter
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The solar hybrid AC/DC air conditioner can work without battery, it works with unstable solar panel DC power at day time. At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office… With APP monitor and control function through WIFI
The charger is an AC to DC charging module. It has the advantages of wide constant power voltage range, high efficiency, high power factor, high power density, minimal electromagnetic radiation and interference, and high reliability to meet the fast charging needs of various batteries. ,Energy saving and environmental protection.
Characters Transformerless with three level topology Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specifications DC side/Input parameters Max. DC power [W] 13200 16500 Max. DC voltage [Vdc] 1000 1000 Min. System start voltage [Vdc] 250 250 MPPT voltage range[Vdc] 250~850 250~850 Max. input current [A] 20/20 20/20 Number of MPP trackers 2 3 Strings per MPP tracker 2 2 AC side/output parameters Nominal output power [W] 12000 15000 Maximum output power [W] 13200 16500 Nominal output voltage/range [V] 50/60 Hz ; 400 Vac AC grid frequency/range [Hz] 45/55 Hz ; 280~490 Vac (Adj) Power factor [%] 0.8leading ... 0.8laging Harmonics <1.5% Maximum output current [A] 20 23 AC connection(with PE) Current distortion(THDi) [%] <1.5 <1.5 Power factor [%] >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.4 98.5 European efficiency[%] 97.9 98 MPPT efficiency[%] 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 510*484*217.5cm Weight (kg) 35 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;EN50439; VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
The solar photovoltaic power system connected to the public grid is called on-grid photovoltaic power generation system. The system structure includes solar panel arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components. Inverter power: 15kW AC output voltage: three phase Solar panel type: mono or poly
What is off grid system? Off-grid solar energy systems are also called stand-alone solar systems. It does not connect with Grid or called Utility. It is very popular and suitable for remote areas where there is no public power or Public power is instable.It can be for Home applications, Commercial applications and Industrial applications. The off-grid solar energy system can be 1kW/2kW/3kW/5kW/10kW/12kW/16kW/20kW/24kW/30kW/50kW/80kW/100kW/120kW/150kW/200kW/ Customized off-gid power system Off-grid system is suitable for areas without grid-connected or unstable grid-connected power. Off grid system is usually composed of solar panels, connector, inverter, batteries and mounting system. Description of 10kW solar panel system: Inverter power: 10kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
