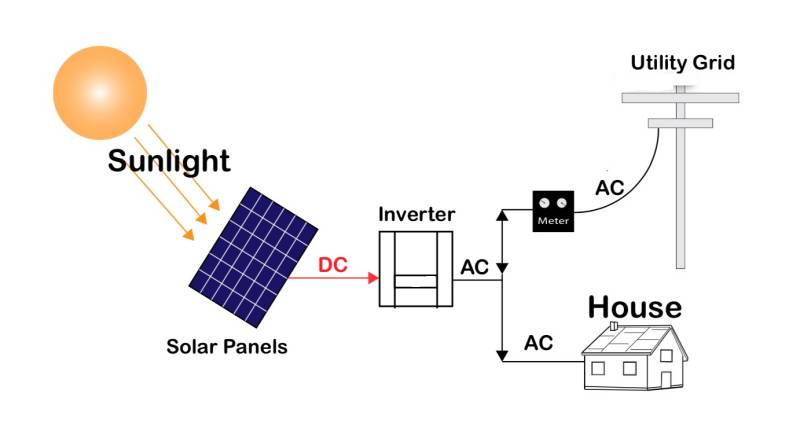

1Working principle

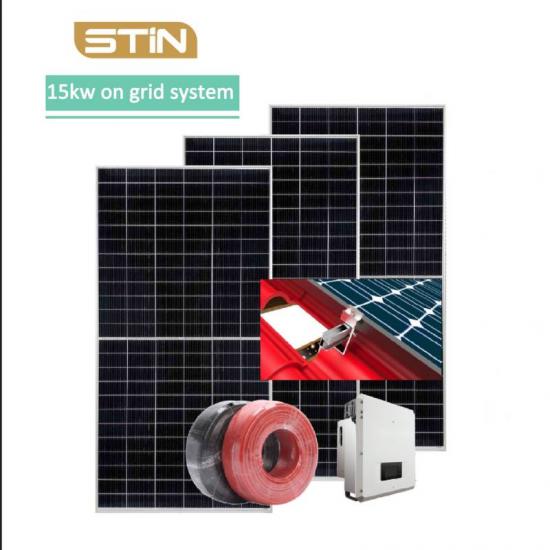

15kW solar on grid system configuration for your reference:
Item
Part
Specification
Quantity
Remarks
1
Solar panel
STIN-mono 550W
28PCS
connection method: 14pcs in string and 2 strings in parallel
2
Inverter
15kW
1pc
three phase output
3
Bracket
aluminum alloy
1SET
ground tyoe or roof type
4
Connector
MC4
4pairs
5
Wifi Module
Monitoring Device
1PC
6
AC cables
4*6mm²
20M
7
PV cables(solar panel to inverter)
4mm²
100M
8
AC distribution box
with breaker and SPD
1SET
20kW solar on grid system configuration for your reference:
Item | Part | Specification | Quantity | Remarks |
1 | Solar panel | STIN-mono 550W | 39PCS | connection method: 13pcs in string and 3 strings in parallel |
2 | Inverter | 20kW | 1pc | three phase output |
3 | Bracket | aluminum alloy | 1SET | ground tyoe or roof type |
4 | Connector | MC4 | 6pairs | |
5 | Wifi Module | Monitoring Device | 1PC | |
6 | AC cables | 4*6mm² | 20M | |
7 | PV cables(solar panel to inverter) | 4mm² | 100M | |
8 | AC distribution box | with breaker and SPD | 1SET |
Main components introduction

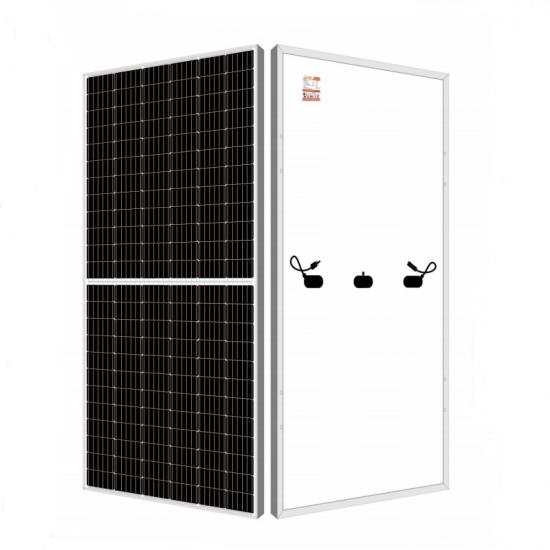

mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs

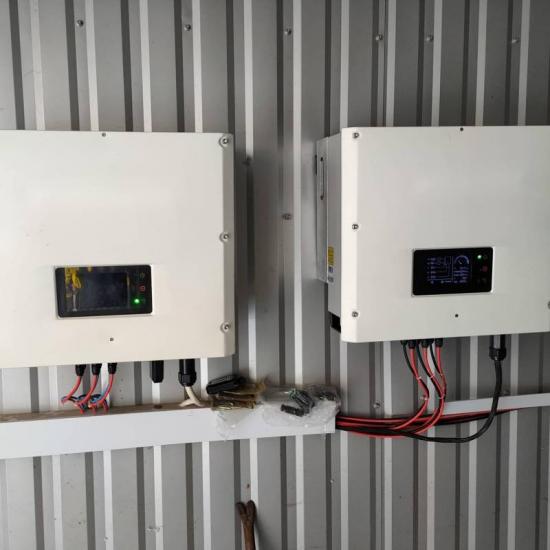

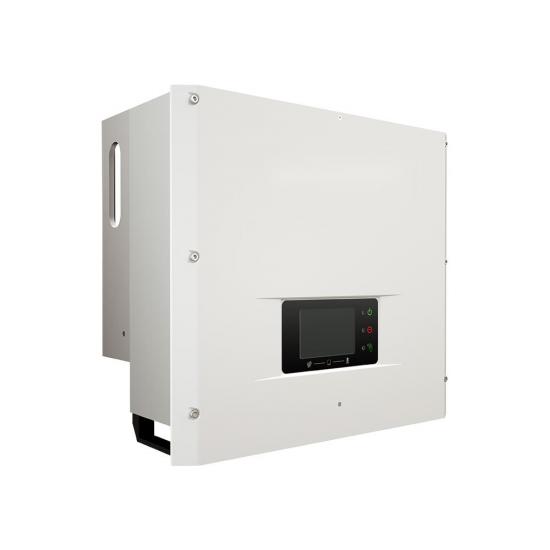

15kW and 20kW on grid inverter, three phase output, IP65, with wifi datalogger, 5 years warranty
PV cables, Stranded tinned copper, UV resistant outshell.
How to choose one suitable solar on grid system?
1, confirm your grid type and voltage
2, confirm the size of your roof top or ground where solar panels will be installed
3, choose the suitable solar panels and inverter
The on grid solar power system converts the solar energy into electrical energy, without the storage battery, and directly sends the electrical energy to the grid through the grid-connected inverter. Inverter power: 5kW AC output voltage: single phase 220V Solar panel type: mono or poly
The on grid solar power system converts the solar energy into electrical energy, without the storage battery, and directly sends the electrical energy to the grid through the grid-connected inverter. Inverter power: 10kW AC output voltage: three phase Solar panel type: mono or poly
The solar photovoltaic power system connected to the public grid is called on-grid photovoltaic power generation system. The system structure includes solar panel arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components. Inverter power: 15kW AC output voltage: three phase Solar panel type: mono or poly
The solar photovoltaic power system connected to the public grid is called on-grid photovoltaic power generation system. The system structure includes solar panel arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components. Inverter power: 20kW AC output voltage: three phase Solar panel type: mono or poly
The on grid solar power system converts the solar energy into electrical energy, without the storage battery, and directly sends the electrical energy to the grid through the grid-connected inverter. Inverter power: 3kW AC output voltage: three phase Solar panel type: mono or poly
The on grid solar power system converts the solar energy into electrical energy, without the storage battery, and directly sends the electrical energy to the grid through the grid-connected inverter. Inverter power: 8kW AC output voltage: three phase Solar panel type: mono or poly
Characters Transformerless with three level topology Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range Compact structure design Complete protection function such as anti-islanding, short circuit, overload Easy installation and free maintenance WiFi or GPRS (optional) communication Component brands Specifications DC side/Input parameters Max. DC power [W] 13200 16500 Max. DC voltage [Vdc] 1000 1000 Min. System start voltage [Vdc] 250 250 MPPT voltage range[Vdc] 250~850 250~850 Max. input current [A] 20/20 20/20 Number of MPP trackers 2 3 Strings per MPP tracker 2 2 AC side/output parameters Nominal output power [W] 12000 15000 Maximum output power [W] 13200 16500 Nominal output voltage/range [V] 50/60 Hz ; 400 Vac AC grid frequency/range [Hz] 45/55 Hz ; 280~490 Vac (Adj) Power factor [%] 0.8leading ... 0.8laging Harmonics <1.5% Maximum output current [A] 20 23 AC connection(with PE) Current distortion(THDi) [%] <1.5 <1.5 Power factor [%] >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98.4 98.5 European efficiency[%] 97.9 98 MPPT efficiency[%] 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 510*484*217.5cm Weight (kg) 35 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;EN50439; VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
The MPPT solar charge controller uses multiphase synchronous rectification technology and common negative pole design, it chooses high speed processor and advanced MPPT algorithm to make it has high response speed, high reliability and other standards. The advanced MPPT algorithm that the solar controller adopts can trace the maximum power point of PV arrays quickly in any situation to obtain the max. power from PV arrays. And the multiphase synchronous rectification technology can achieve high conversion efficiency in any charging environment and improve the utilization rate of solar power system greatly. According to the rated voltage of battery bank system, our factory can provide the MPPT solar charge controller from 192V to 540V which suitable to almost off grid solar power system
