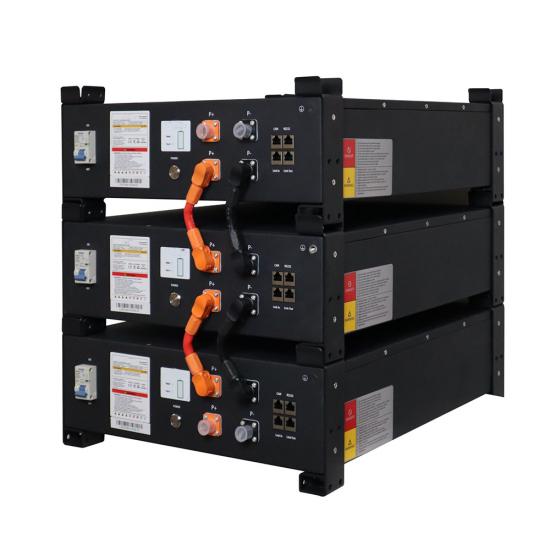

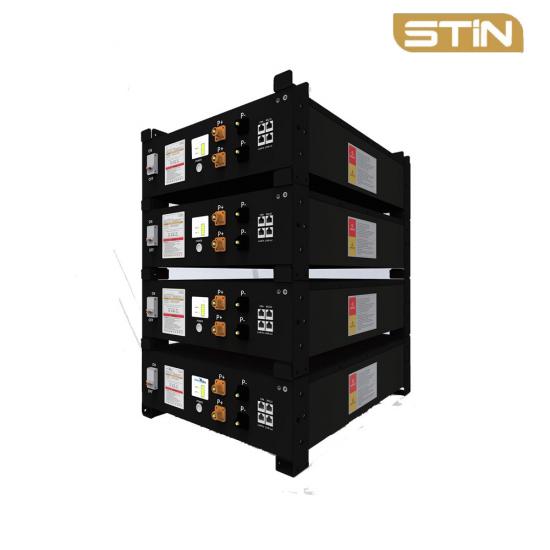

Multiple LWBAT-R512Aacan be connected parallel to expand capacity and power 15 LV-BAT-R5.12Aa can be connected in parallel at most
Specification
Model
LV-BAT-R5.12Aa
Nominal Voltage
51.2V
Rated Capacity
100Ah
Energy
5120Wh
Charging Cut-off Voltage
56.16 V
Discharge Cut-off Voltage
45.6 V
Recommend charge/discharge current
50A
Maximum continuous charge/discharge current
100A
Instantaneous discharge current
200A/1S
Charge temperature
0~55°C
Discharge temperature
-20~60ºC
Storage Environment
20°C ~ 45°C in three months;
Environment
Indoor
Installation
Wall-mounted/Rack Mount
Cell Technology
Lithium iron phosphate (LiFePO4)
Life Cycle
6000 times @80%DOD
Cooling
Natural cooling
Protection Rating
IP20
Certificates
CB, IEC62619, UKCA, CE-EMC,

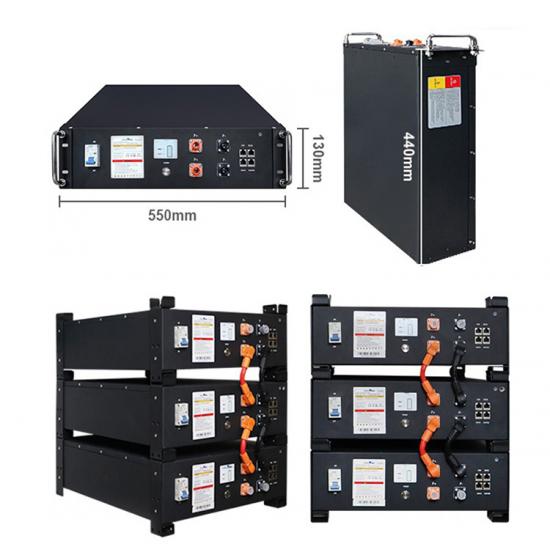

Dimension
550*440*130mm(3U)
Weight
44.35KG/47.85KG
Communication
RS232, CAN, RS485
(50% state of charge)
25±3°C over three months; Humidity:65±20%RH
CE-GPSD,EN62619; UN38.3, MSDS, UL1973, UL9540A

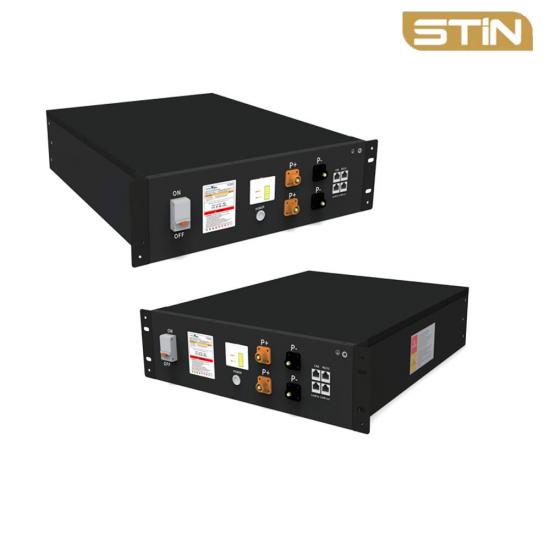

LV-BAT-R5.12Aa is a lithium battery with an operating voltage range between 45.6~56.2V. It is designed for residential energy storage applications and works together with a low voltage hybrid inverter.LV-BAT-R5.12Aa is not suitable for supporting life-sustaining medical devices. LLV-BAT-R5.12Aa ihas built-in BMS (Battery Management System), which can manage and monitor cells information including voltage, current and temperature. Besides that,BMS can balance cells charging to extend cycle life.BMS has protection functions including over-discharge,over-charge, over-current and high/low temperature;the system can automatically manage charge state, discharge state, and balance state. Multiple LWBAT-R512Aacan be connected parallel to expand capacity and power 15 LV-BAT-R5.12Aa can be connected in parallel at most
Off-grid solar energy systems is mainly composed of photovoltaic modules, controllers, inverters, batteries and other accessories The working principle of the solar panel system is that the photovoltaic module converts light energy into direct current, and the direct current is converted into alternating current under the action of the inverter, and finally realizes the power consumption function. It can be for Home applications, Commercial applications and Industrial applications. Inverter power: 5kW AC output voltage: AC110V/120V Battery voltage: DC24V or DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
The MPPT solar charge controller uses multiphase synchronous rectification technology and common negative pole design, it chooses high speed processor and advanced MPPT algorithm to make it has high response speed, high reliability and other standards. The advanced MPPT algorithm that the solar controller adopts can trace the maximum power point of PV arrays quickly in any situation to obtain the max. power from PV arrays. And the multiphase synchronous rectification technology can achieve high conversion efficiency in any charging environment and improve the utilization rate of solar power system greatly. According to the rated voltage of battery bank system, our factory can provide the MPPT solar charge controller from 192V to 540V which suitable to almost off grid solar power system
Characters Optimized transformer-less topology structure Max efficiency up to 98.4% Dual MPPT inputs accommodating wide voltage range. SIC components enhance power density. 0 ampere leakage current design protect against tripping Easy installation and free maintenance WiFi or GPRS (optional) communication Multi-inverters parallel connection available 5 years standard warranty, 15years extention optional High standard components design maximally reduce damage resulted from false-operation Component brands Specification Model No ST4KTL ST5KTL ST6KTL ST8KTL ST10KTL DC side/Input parameters Max. DC power [W] 5500 6500 7500 9500 11500 Max. DC voltage [Vdc] 1000 1000 1000 1000 1000 Min. System start voltage [Vdc] 250 250 250 250 250 MPPT voltage range[Vdc] 250~850 250~850 250~850 250~850 250~850 Max. input current [A] 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 12.5/12.5 Number of MPP trackers 2 2 2 2 2 Strings per MPP tracker 1 1 1 1 1 AC side/output parameters Nominal output power [W] 4000 5000 6000 8000 10000 Maximum output power [W] 5000 5500 7000 8800 11000 Nominal output voltage/range [V] 400Vac/ 380-440V AC grid frequency/range [Hz] 50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current [A] 8 10 12 15 17 AC connection(with PE) 3W/N/PE Three phase Three phase Three phase Three phase Current distortion(THDi) [%] <1.5 <1.5 <1.5 <1.5 <1.5 Power factor [%] >99.95 >99.95 >99.95 >99.95 >99.95 Efficiency Maximum conversion efficiency[%] 98 98.2 98.2 98.3 98.4 European efficiency[%] 97.5 97.7 97.7 97.8 97.9 MPPT efficiency[%] 99.9 99.9 99.9 99.9 99.9 Safety and protection yes DC reverse-polarity protection yes Anti-islanding / Overvoltage protection yes Short circuit protection yes Leakage current protection yes Grid monitoring / Ground fault monitoring yes DC/AC side varistors(thermally protected) yes General Parameters yes Dimension(L/W/H)[mm] 480*400*180 Weight (kg) 22 Embedded DC Switch Optional Night power consumption[W] <0.2 Isolation type Transformerless Protection degree IP65 according to IEC60529 Operation temperature[ºC] -25 ~ 60 Cooling concept Natural convection Acoustic noise level[dB] <25 Operating altitude[m] <2000 without power derating Display Graphic LCD Communication Interface Standard WIFI; GPRS(optional) Certificates and Approvals CE-(EMC/LVD) : EN(IEC) 61000-1/-2/-3/; EN(IEC) 62109-1/-2;IEC 61727/62116;G83-3/G59-3; EN50438;VDE-0126-1-1;VDE-AR-N4105;AS4777.2;AS4777.3 Projects
Features: The battery module consists of single LFP cells, wire, BMS and container. ●Packed with high performance LFP single cell, long life, safety and wide temperature range ●High energy density, small size, light weight, no pollution ●Packing with single cell container, fire retardant wire and laser welding, stable and safe ●Built-in BMS, with battery voltage, current, temperature and health management ●LED indicate the battery SOC and operating status ● LCD Screen display the battery voltage, current, temp.,SOC detail information ●Support communicate with solar inverter bu CAN or RS485 ●Update software by RS485 port ●Flexible customization of dimensions ●More than 15 years design life ●Stable performance, maintenance-free Dimension Specification Item Specification Conditions Nominal Voltage 51.2V 25℃,0.2C Capacity 200Ah Module weight 80.0kg ±1kg Dimensions(W*D*H), mm 442*600*230 ±2mm Operating parameters Charging Voltage 56.0+/-0.8V End-off Voltage 44.8V Charging current Max constant charge: 100A Recommended 30A Discharging current Max constant discharge: 100A Temperature Charge range 0℃~50℃ Discharge range -20℃~55℃ Storage range -20℃~55℃ BMS Built-in BMS Voltage, current, temperature management & cell balance RS485,CAN communication Service life Design life >15years 25℃ Cycle life >6000 times, 0.5C, 80%DOD Performance curve
The 5kw off grid solar power system is suitable for a place where is no grid network or grid power is not stable. It can be described solar storage system with utility backup power, or grid-tied solar system with extra battery storage(no feed into grid). Inverter power: 5kW AC output voltage: AC110V/120V or AC220V/230V/240V Battery voltage: DC48V Battery type: Gel battery or LiFePO4 battery Solar panel type: Mono or poly Compatible with grid and generator Monitor: WIFI or GPRS
ENERGY EFFICIENT COOLING & HEATING SYSTEM - This split inverter system offers efficient cooling and heating capabilities, with DC Inverter technology provides up to 71% energy saving on the ECO mode. SMART AND ALWAYS GETTING SMARTER - Wifi enable mini split system work remote control, You can control your mini split air conditioner from anywhere while you're away to save energy and feel cooler when you get home. QUIET OPERATION - This highly-efficient mini split inverter system warrants ultra-low noise, the indoor unit operates as quiet as 19 dBa. The mini split provides balanced airflow to throughout your room and can adjust to suit your personal comfort.
The solar photovoltaic power system connected to the public grid is called on-grid photovoltaic power generation system. The system structure includes solar panel arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components. Inverter power: 20kW AC output voltage: three phase Solar panel type: mono or poly
