The on grid solar power system converts the solar energy into electrical energy, without the storage battery, and directly sends the electrical energy to the grid through the grid-connected inverter.
Inverter power: 10kW
AC output voltage: three phase
Solar panel type: mono or poly
Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/Ningbo/ShenzhenLead Time:
20daysOrder(MOQ):
1Working principle

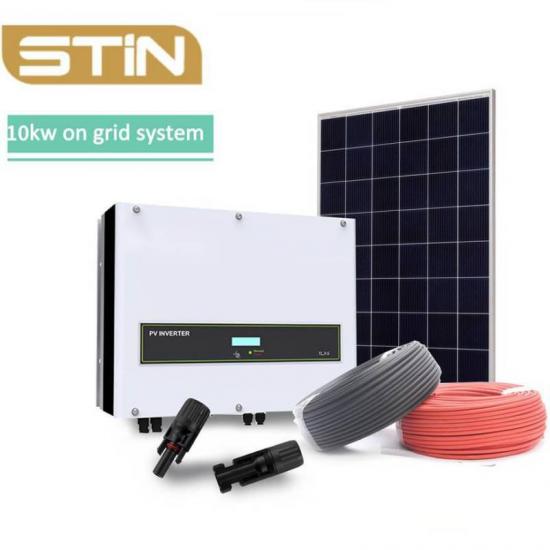

10kW solar on grid system configuration for your reference:
| Item | Part | Specification | Quantity | Remarks |
| 1 | Solar panel | STIN-mono 400W | 28PCS | connection method: 14pcs in string and 2 strings in parallel |
| 2 | Inverter | 10kW | 1pc | three phase output |
| 3 | Bracket | aluminum alloy | 1SET | ground tyoe or roof type |
| 4 | Connector | MC4 | 4pairs | |
| 5 | Wifi Module | Monitoring Device | 1PC | |
| 6 | AC cables | 4*4mm² | 20M | |
| 7 | PV cables(solar panel to inverter) | 4mm² | 100M | |
| 8 | AC distribution box | with breaker and SPD | 1SET |
Main components introduction
 |
mono or poly solar panels, grade A cells, with excellent low irradiance performance and excellet PID resistance |
 |
mounting structure for solar panels, gavalnized steel or aluminum alloy, roof type or ground type. It can be designed based on your needs |
 |
10kW on grid inverter, three phase output, IP65, with wifi datalogger, 5 years warranty, tie 1 brand such as Deye, Growatt, Solis, Sungrow |
 |
PV cables, Stranded tinned copper, UV resistant outshell. |
How to choose one suitable solar on grid system?
1, confirm your grid type and voltage
2, confirm the size of your roof top or ground where solar panels will be installed
3, choose the suitable solar panels and inverter
FAQ
1: What's your main products?
solar lithium-ion battery, on grid, off grid and hybrid solar system, solar inverter, high voltage mppt solar charge controller, solar air conditioner
2:What is your advantage in solar products?
We have been in solar industry for more than 10years and accumulated rich experience. With branch in Japan, Korea, Singapore and Cambodia, full support can be supplied from design to installation.
3: Can you send free samples?
It depends on which kind of products. Normally the sample fee will be returned after you place massive order.
4: What's the shipping cost?
After you confirm the quantity, please let us know which kind of transportation(by sea, by air, by DHL or Fedex or TNT or UPS) you prefer and the destination port. We will send you the shipping cost and time.
5: What's your minimum order quantity?
1pc.
6: How can we send the payment?
T/T, L/C, Paypal, Western Union.
