20kw off grid solar power system in Mongolia

20kw off grid solar power system in Mongolia, the output voltage of inverter is 400V, supply power to living house in remote area.

The components of this system

1pc 20kw three phase inverter(power frequency type)

1pcmppt solar charge controller 192V100A

32pcs 12V200AH Gel batteries(16pcs in one string and 2 strings in parallel)

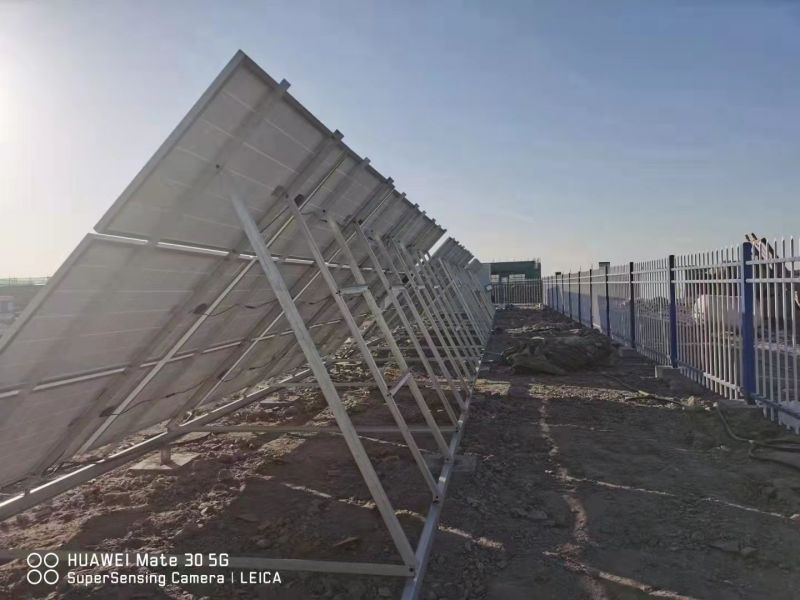

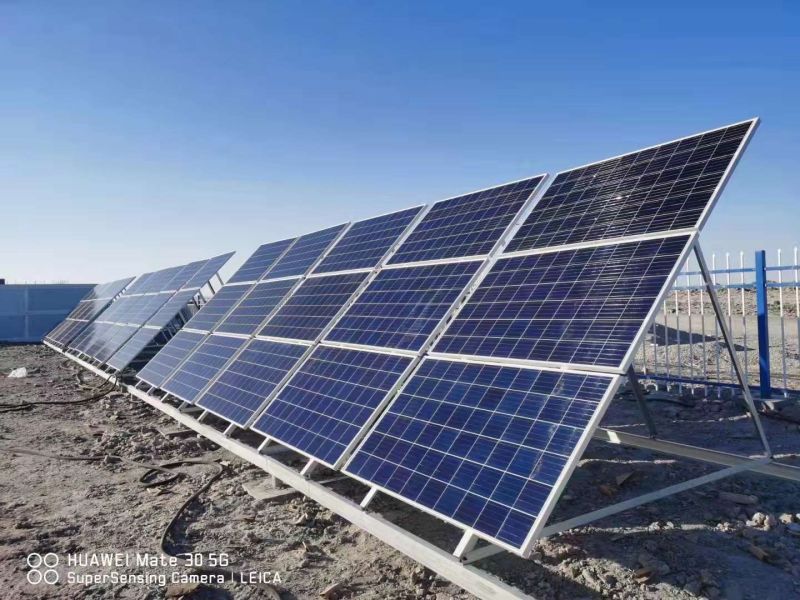

48pcs 270W poly(8pcs in one string and 6 strings in parallel)

2pcs PV combiner boxes(3 inputs, 1 output).
