100kw off grid solar system for one island with Lifepo4 battery storage
Apr 18, 2022
This system is installed in one island of China. It will supply power to communication equipments and some home appliances. The main components are as follows:

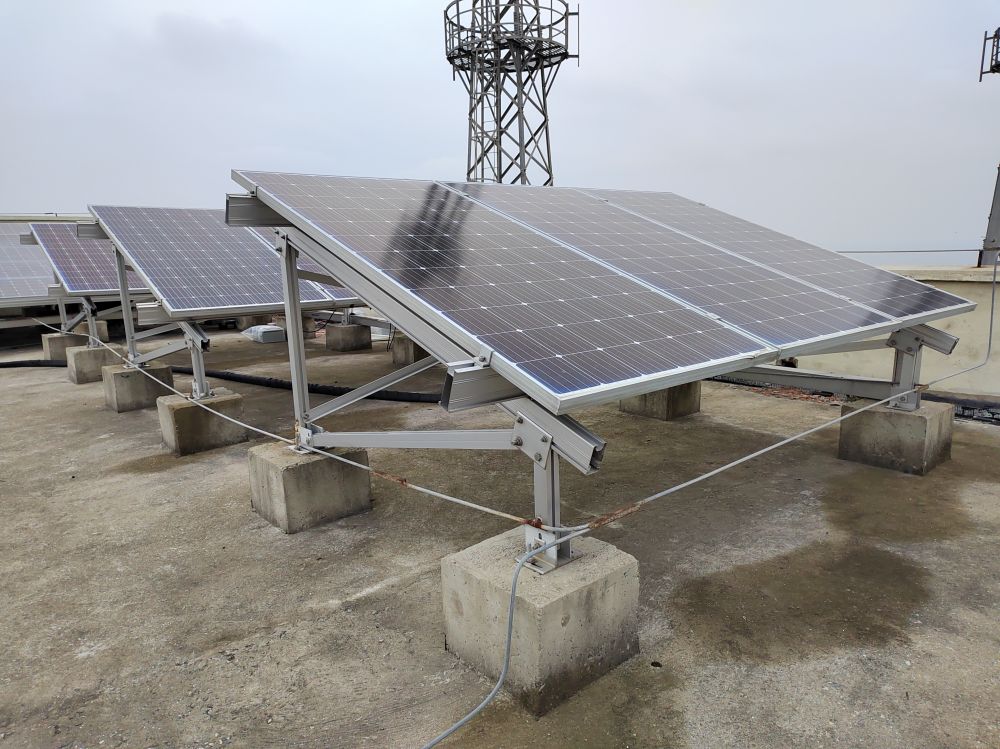

180pcs 400W mono(15pcs in one string and 12 strings in parallel)
2pcs pv combiner boxes(6 inputs, 1 output)
2pcs 360V100A mppt solar charge controller

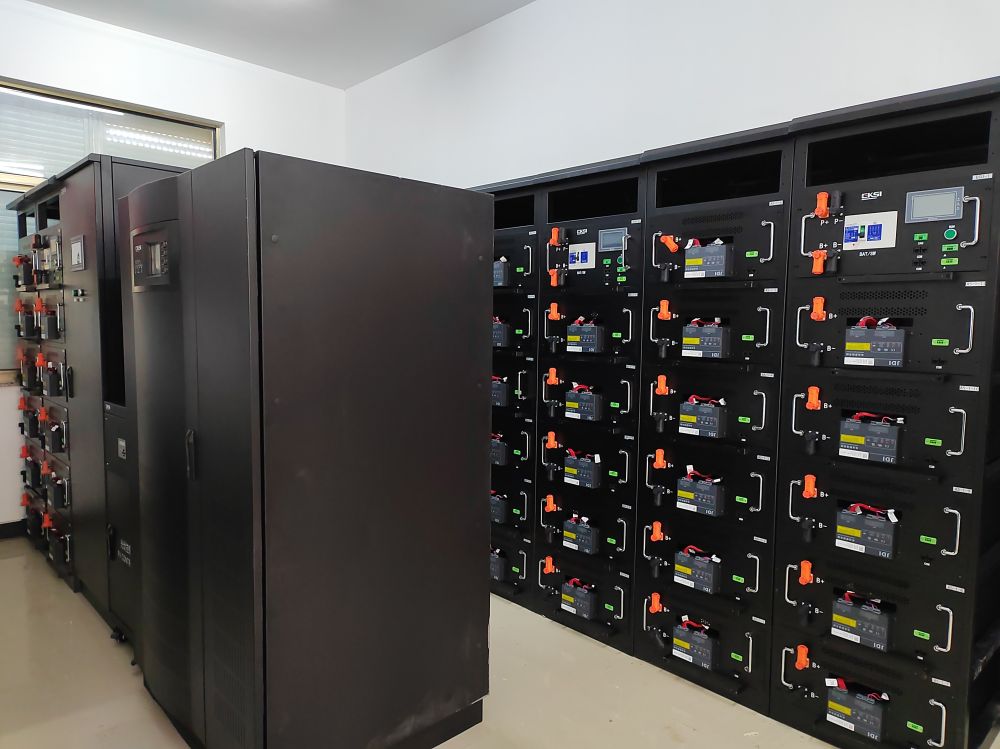

1 set 360V800AH Lifepo4 battery
1pc 100kw/360v three phase power frequency inverter
