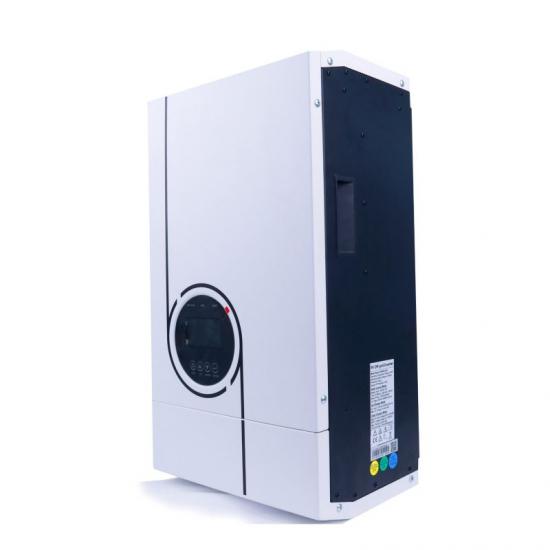

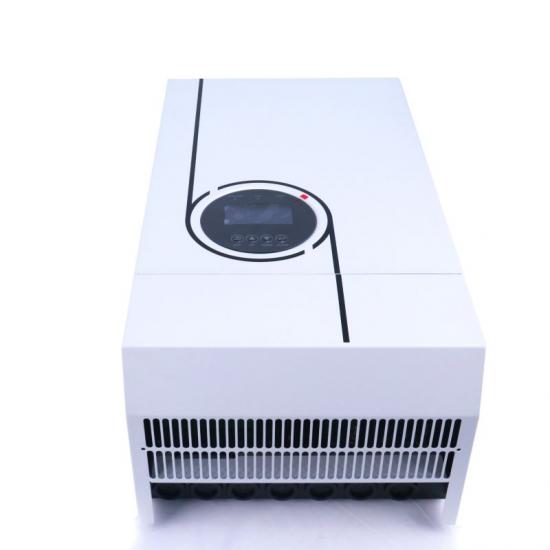

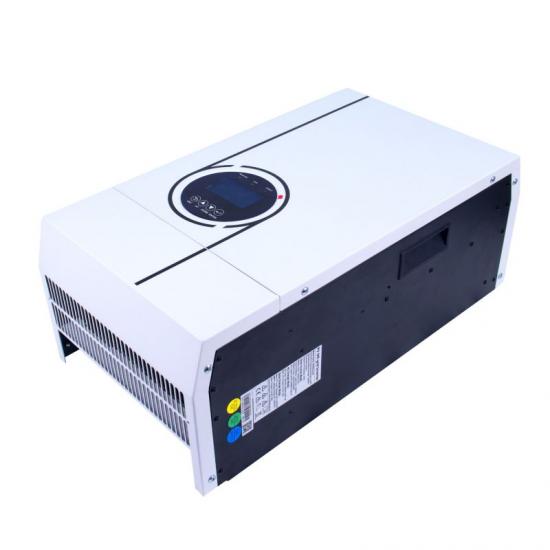

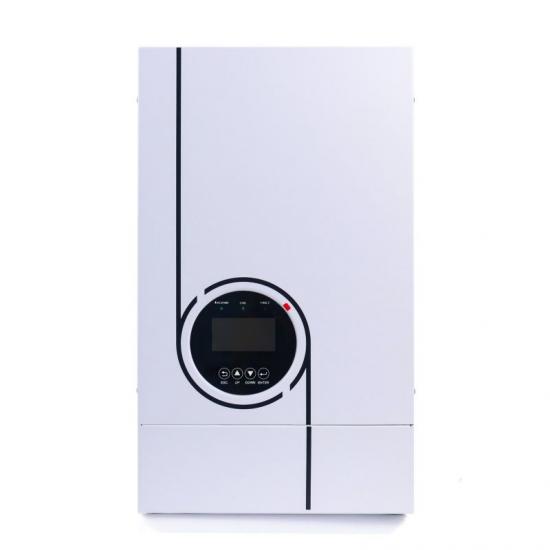

This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a low frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. This inverter can work with or without batteries.

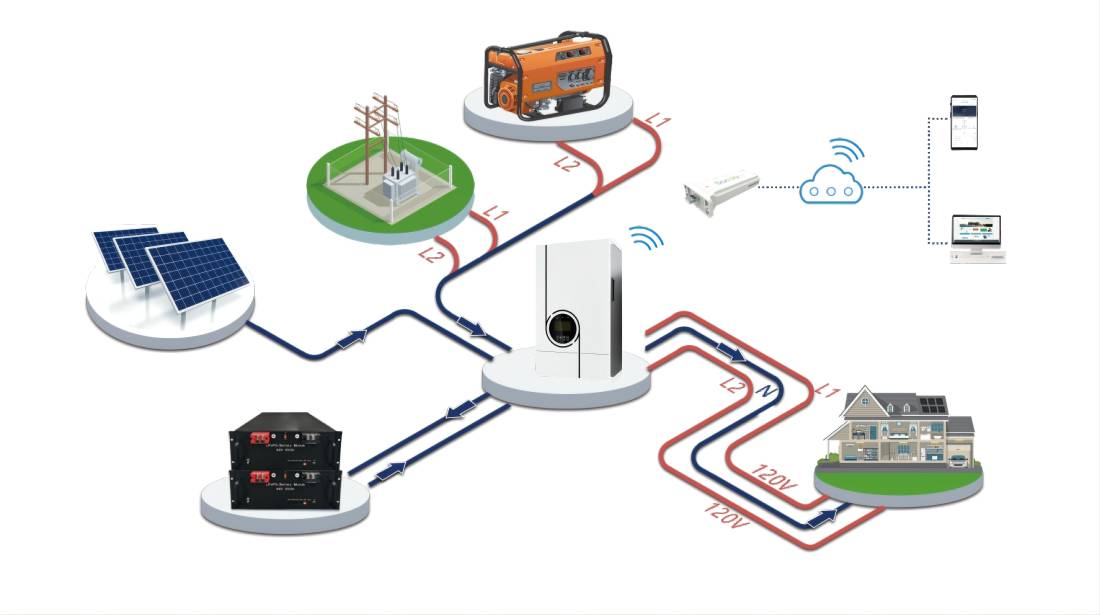

The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. The wifi/GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device,, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Item NO.:
M6000LSPayment:
TT/LC/PAYPALProduct Origin:
CHINAColor:
whiteShipping Port:
Shanghai or ShenzhenLead Time:
10daysGoods Stock:
50Order(MOQ):
1Product weight:
38500
Main features:
Rated power 6kw, power factor 1
Output voltage 120V/240V split phase or single phase 230V/240V
PV input voltage range 60 to 250V
Low frequency inverter with large transformer
Pure sine wave AC output
Solar and utility can power loads at the same time
With CAN/RS485 for BMS communication
With the ability to work without battery

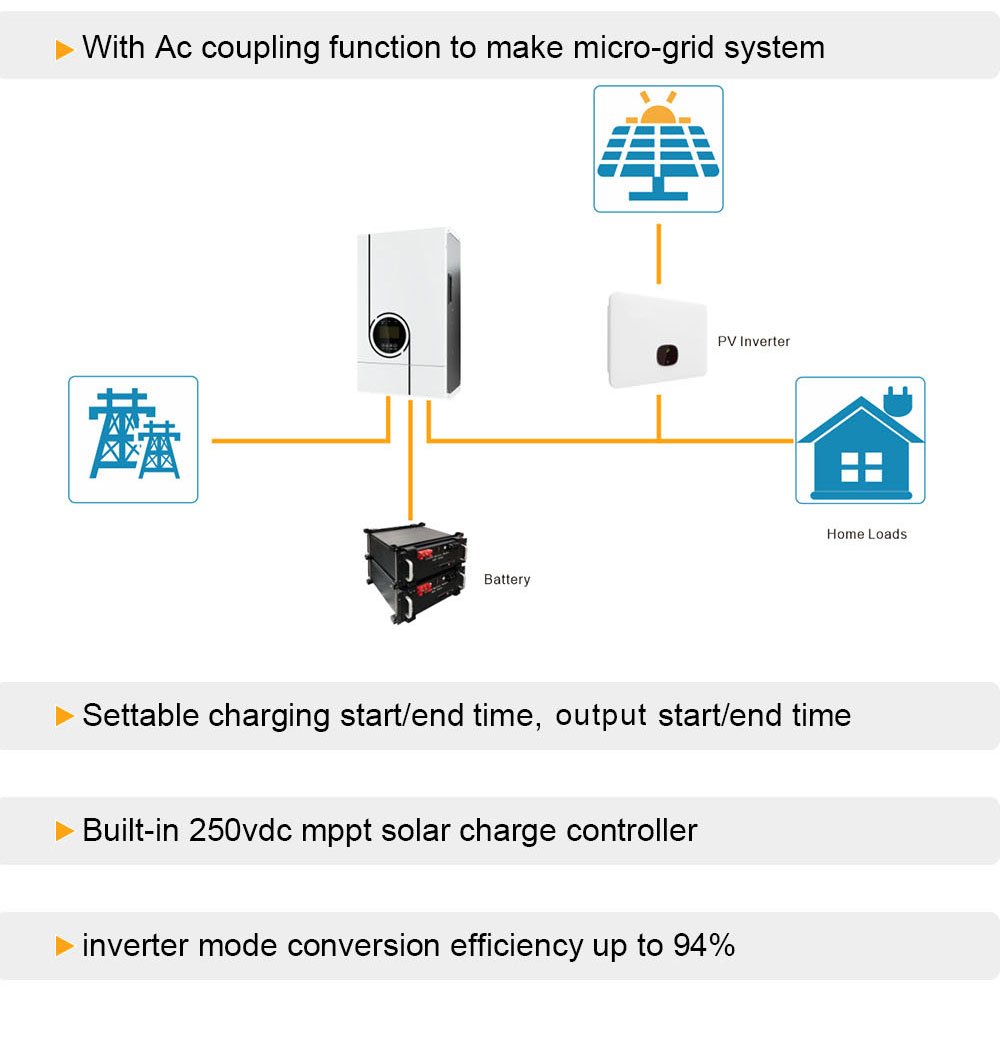

With AC coupling function

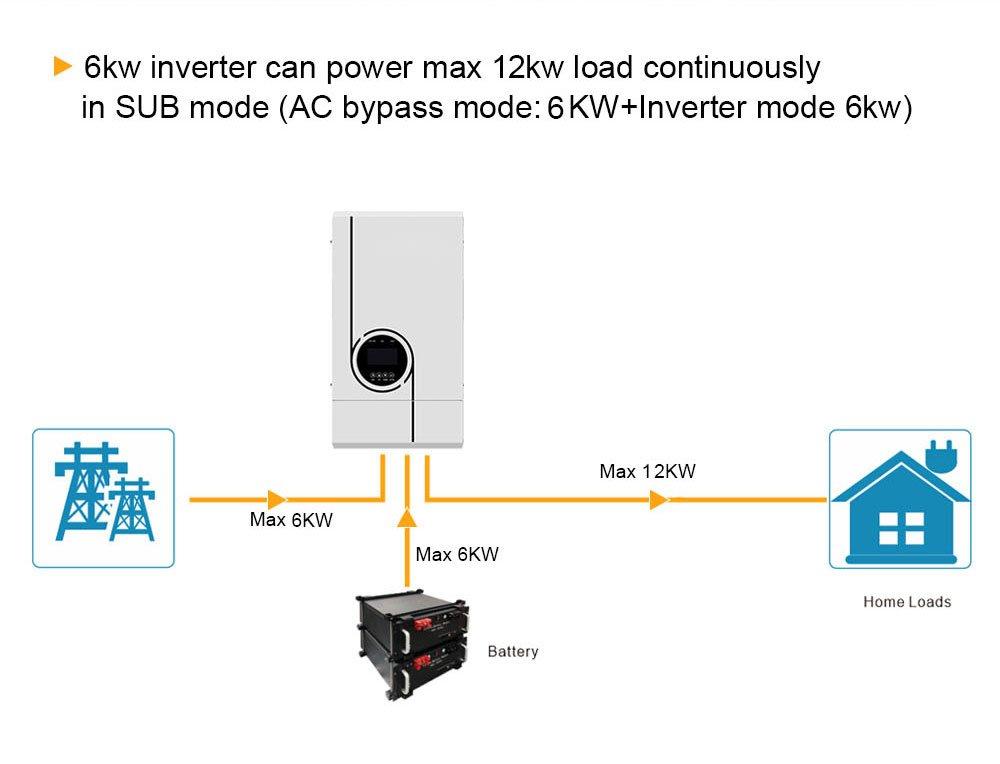

AC bypass mode+inverter mode jointly output continuously 12kW

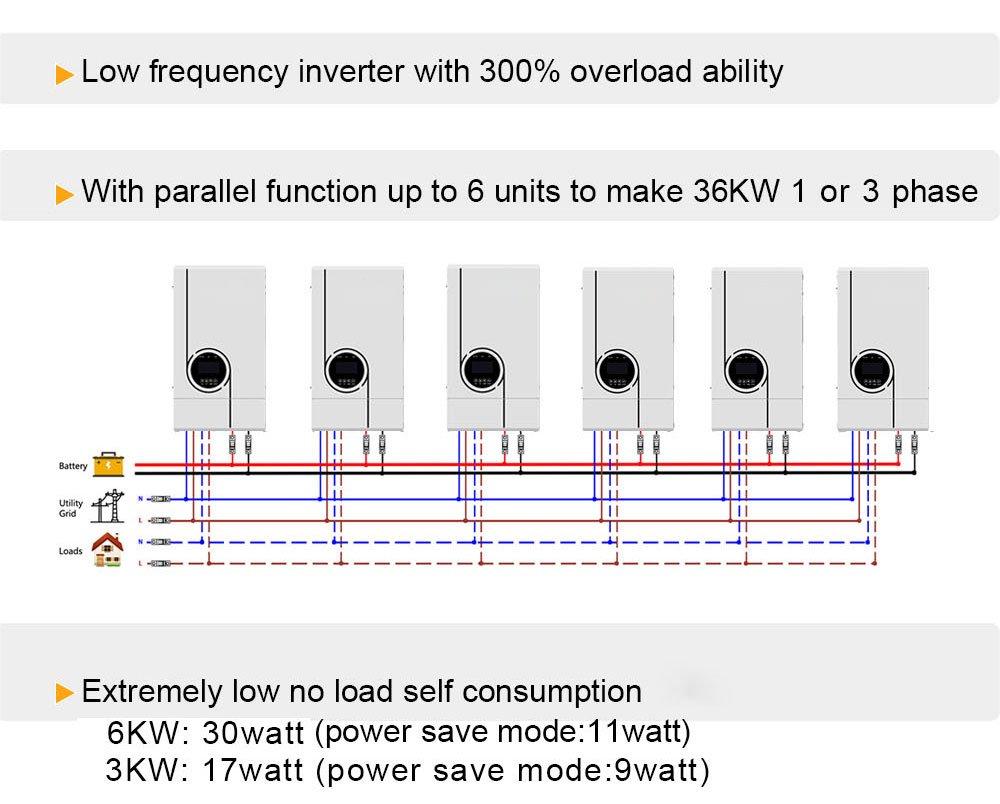

Parallel operation up to 6 units
High conversion efficiency up to 94%
Overload capacity 300%
Basic specification
| INVERTER MODEL | M6000LS | |
| Operating Temperature Range | -20°C to 50°C | |
| Storage temperature | -40°C~ 60°C | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Altitude | <2000m | |
| Dimension, mm | 650x 365 x 247 | |
| Net Weight, kg | 38.5 | |
Line mode specification
| INVERTER MODEL | M6000LS | ||||
| Input Voltage Waveform | Sinusoidal (utility or generator) | ||||
| Nominal Input Voltage | 240Vac | ||||
| Low Loss Voltage | 184Vac±7V (UPS) | ||||
| 154Vac±7V (Appliances) | |||||
| Low Loss Return Voltage | 194Vac±7V (UPS); | ||||
| 164Vac±7V (Appliances) | |||||
| High Loss Voltage | 272Vac±7V | ||||
| High Loss Return Voltage | 262Vac±7V | ||||
| Max AC Input Voltage | 300Vac | ||||
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) | ||||
| Low Loss Frequency | 45±1Hz | ||||
| Low Loss Return Frequency | 47±1Hz | ||||
| High Loss Frequency | 65±1Hz | ||||
| High Loss Return Frequency | 63±1Hz | ||||
| Output Short Circuit Protection | Line mode: Circuit Breaker | ||||
| Battery mode: Electronic Circuits | |||||
| Efficiency (Line Mode) | >95% ( Rated R load, battery full charged ) | ||||
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) | ||||
Inverter mode specification
| INVERTER MODEL | M6000LS |
| Rated Output Power | 6KVA/6KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 120/240Vac±5% |
| Output Frequency | 60Hz or 50Hz |
| Peak Efficiency | 94% |
| Overload Protection | 5s@≥150% load; 10s@110%~150% load |
| Surge Capacity | 3* rated power for 5 seconds |
| Nominal DC Input Voltage | 48Vdc |
| Cold Start Voltage | 46.0Vdc |
| Low DC Warning Voltage | |
| @ load < 20% | 44.0Vdc |
| @ 20% ≤ load < 50% | 42.8Vdc |
| @ load ≥ 50% | 40.4Vdc |
| Low DC Warning Return Voltage | |
| @ load < 20% | 46.0Vdc |
| @ 20% ≤ load < 50% | 44.8Vdc |
| @ load ≥ 50% | 42.4Vdc |
| Low DC Cut-off Voltage | |
| @ load < 20% | 42.0Vdc |
| @ 20% ≤ load < 50% | 40.8Vdc |
| @ load ≥ 50% | 38.4Vdc |
| Low DC Cut-off Voltage (Li Mode) | 42.0Vdc |
| Low DC Warning SOC (Li Mode) | Low DC Cut-off SOC +5% |
| Low DC Warning Return SOC (Li Mode) | Low DC Cut-off SOC +10% |
| Low DC Cut-off SOC(Li Mode) | Default 20%, 5%~49% settable |
| High DC Recovery Voltage | 58Vdc |
| High DC Cut-off Voltage | 60.8Vdc |
| No Load Power Consumption | <35W |
Charging mode specification
| INVERTER MODEL | M6000LS |
| Efficiency | 98.0% max. |
| Max. PV Array Open Circuit Voltage | 250Vdc |
| PV Array MPPT Voltage Range | 60~250Vdc |
| Min battery voltage for PV charge | 34Vdc |
| Battery Voltage Accuracy | 0.30% |
| PV Voltage Accuracy | +/-2V |
| Charging Algorithm | 3-Step |
| Joint Utility and Solar Charging | |
| Max Charging Current | 140Amp |
| Default Charging Current | 60Amp |
