Payment:
TT/LC/PAYPAL/WESTUNIONProduct Origin:
ChinaShipping Port:
Shanghai/ShenzhenLead Time:
20daysOrder(MOQ):
1System composition
|
Components |
Function Description |
|

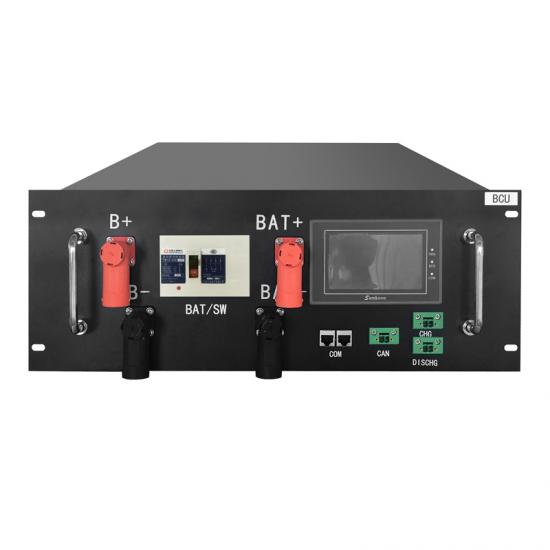

BCU |
Master-slave communication, external communication, state estimation, safety management, charge-discharge management, control output, control input, total voltage detection, insulationdetection |
|

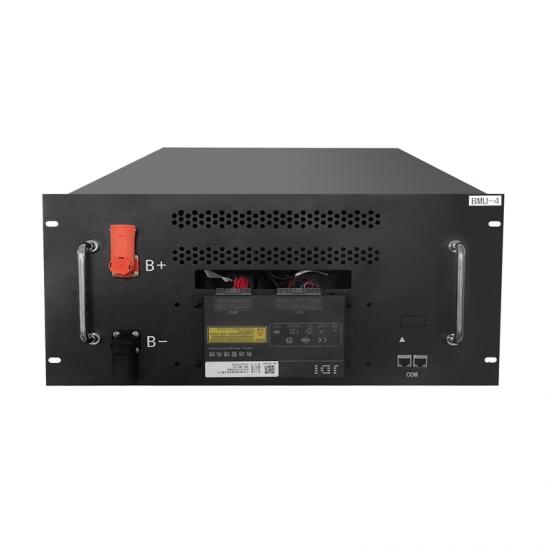

BMU |
Master- slave communication, 4~48 series single cell voltage acquisition, 4 channels/ channel temperature acquisition |
|
CSU |
Current sampling, support Hall sensor and JDI shunt |
|
Wire harness |
Voltage detection, temperature detection, communication connection, power supply connection, sensor continuity, control connection |
|
LCD |
Data display, parameter configuration, fault alarm |
|
DTU |
Remote data upload, remote data download, mobile phone application |
Technical features
Support 8-channel relay control;
Support 3 channels CAN communication function; support 1 channel RS485 communication function;
Support battery status data management, real-time drawing battery cluster information, complete processing to achieve power battery management and control; independent total voltage acquisition, acquisition range 0~900 V, to achieve real-time detection of group terminal voltage;
Support SOC/SOH estimation, high-precision estimation of cell and battery SOC, SOH; support Bootloader, can be online through the CAN bus application upgrade;
Support fault detection function, according to voltage, current, temperature, SOC, SOH and other threshold alarm function, as well as limit alarm threshold circuit cut off protection function;
Support data storage function, support system running data local storage and power-down storage function;
Product technical parameters
| Model | FBP 96100 | FBP 96200 | FBP 192100 | FBP 192200 | FBP 384100 | FBP 384200 |
| Type of core | Lithium iron phosphate | |||||
| Rated energy (KWH) | 10 | 20 | 20 | 40 | 40 | 80 |
| Nominal capacity (AH) | 100 | 200 | 100 | 200 | 100 | 200 |
| Nominal voltage (VDC) | 96 | 192 | 384 | |||
| Operating voltage range (VDC) | 78~112.5 | 156~225 | 312~450 | |||
| Recommended Charge Voltage (VDC) | 105 | 210 | 420 | |||
| Recommended discharge cutoff voltage (VDC) | 91.5 | 183 | 366 | |||
| Standard charging current (A) | 20 | 40 | 20 | 40 | 20 | 40 |
| Maximum continuous charge current (A) | 100 | 200 | 100 | 200 | 100 | 200 |
| Standard discharge current (A) | 20 | 40 | 20 | 40 | 20 | 40 |
| Maximum continuous discharge current (A) | 100 | 200 | 100 | 200 | 100 | 200 |
| Working temperature | -20~65℃ | |||||
| Protection level | IP20 | |||||
| Communication interface | RS485/CAN two choose one | |||||
| Reference Weight (Kg) | 140 | 280 | 280 | 560 | 500 | 1000 |
| Reference size (D*W*Hmm) | 530*550*760 | 625*550*970 | 530*550*1180 | 625*550*1600 | 530*550*2020 | (625* 550*1600)*2 |

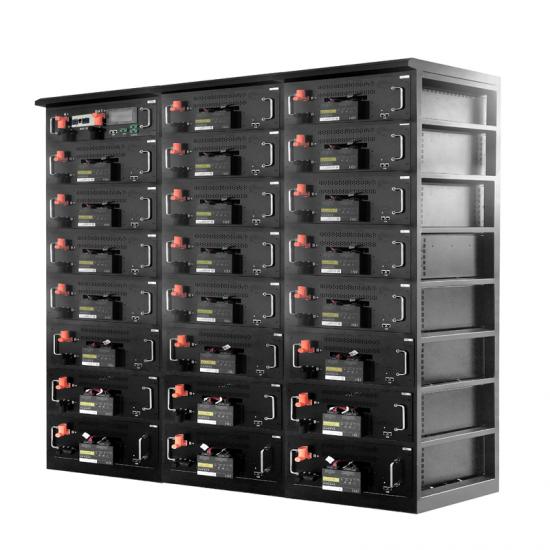

GBP series lithium iron phosphate batteries are a new type of environmentally friendly backup power supply launched for energy storage and power backup applications. The system adopts environmentally friendly lithium iron phosphate batteries and equipped with a customized BMS system for effective management of the battery cells, providing superior product performance and safety and reliability compared to traditional batteries. The product has a high number of charge and discharge cycles, high power density and long service life. Unique design and innovation in compatibility, energy density, dynamic monitoring, safety, reliability and product appearance can bring users a better experience in energy storage applications.
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
Off-grid or hybrid optional 6KW inverter, Max 3pcs in parallel Grade A battery cells, up to 6000+ cycles 5.5KWh battery, Max 12pcs in parallel Easy to install, combined freely BMS & battery capacity auto-sense WiFi/GPRS remote monitoring (optional)
The LiFePO4 battery ESS (Energy Storage System) includes LiFePO4 battery, PCS. The system includes 100KWh LiFePO4 battery, 50KW PCS, liquid cooling system and Fire protection system. The system includes BMS, PCS, and EMS.
The LiFePO4 battery ESS (Energy Storage System) includes LiFePO4 battery, PCS. The system includes 100KWh LiFePO4 battery, 50KW PCS, liquid cooling system and Fire protection system. The system includes BMS, PCS, and EMS.
The 3kw solar inverter is integrated with MPPT solar charge controller inside. It can also connect to grid to take grid as backup when battery is over discharged. The output voltage is 120V, several pieces in parallel can get 120V/240V split phase. All of parameter such as working mode, charging current, over discharge voltage can be set as you wish.
